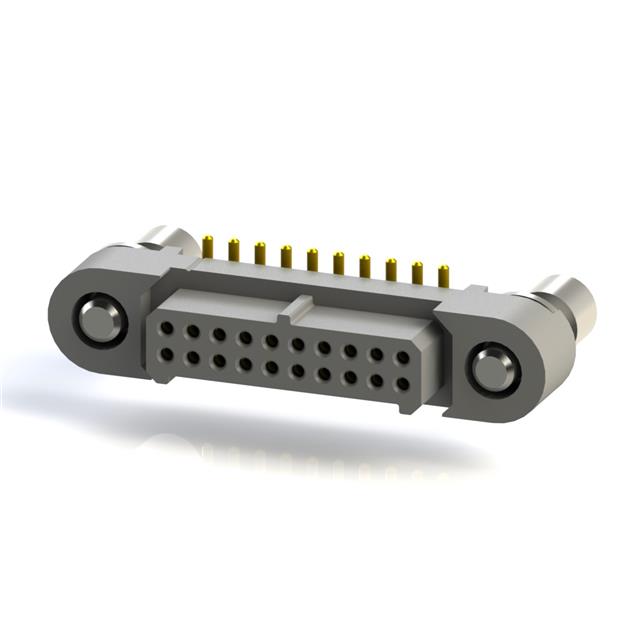

A222T20V Series
Manufacturer: Nicomatic
Beta
⌘K
FEM. 20POS STRAIGHT SMT 1.00MM
| Part | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Finish - Post | Connector Type | Features | Voltage Rating | Insulation Color | Termination | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Number of Positions Loaded | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Rows [custom] | Number of Positions | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Mounting Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | Copper Alloy | Liquid Crystal Polymer (LCP) | 0.15 µm | 5.9 µin | Circular | Gold | Receptacle | Jackscrews Mating Flange Mounting Flange Polarizing Key | 600 VAC | Black | Solder | 2.5 A | 4 mm | 0.157 in | UL94 V-0 | All | Gold | 0.039 in | 1 mm | 1 mm | 0.039 in | -65 ░C | 200 °C | Push-Pull | 2 | 20 | 5.9 µin | 0.15 µm | Surface Mount | Female Socket |
