T 3374 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Connector Type	Shell Material	Mounting Type	Number of Positions	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Features	Primary Material	Ingress Protection	Shell Finish	Contact Finish - Mating	Voltage Rating	Shell Size - Insert	Color	Fastening Type	Insert Material	Housing Color	Material Flammability Rating	Contact Size	Shielding	Contact Type	Note	Type	Contact Shape
Amphenol Tuchel Industrial T 3374 058	Plug Male Pins	Die Cast	Free Hanging (In-Line) Right Angle	5	7 A	-40 C	100 °C	Keyed	Strain Relief	Metal	IP40	Nickel	Gold	250 V	M16-5	Silver	Bayonet Lock
Amphenol Tuchel Industrial T 3374 005	Plug Male Pins	Die Cast	Free Hanging (In-Line) Right Angle	5	7 A	-40 C	100 °C	Keyed	Strain Relief	Metal	IP40	Nickel	Silver	250 V	M16-5	Silver	Bayonet Lock

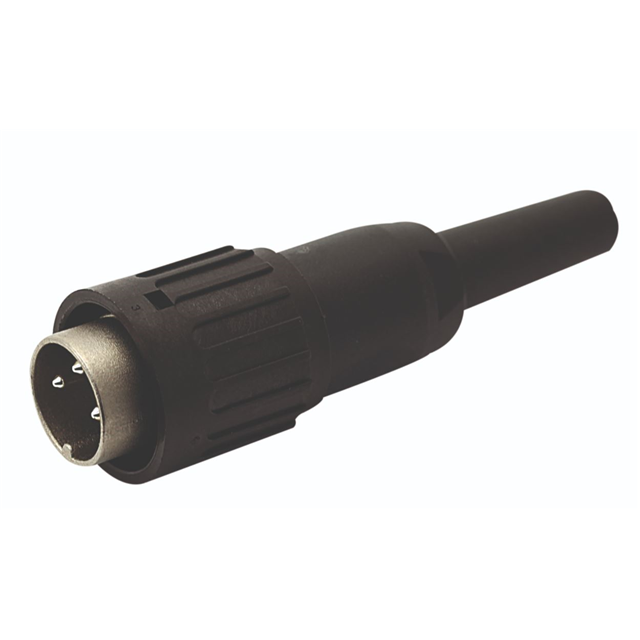

Amphenol Tuchel Industrial T 3374 551	Plug Housing	Die Cast	Free Hanging (In-Line)	5		-40 C	100 °C	Keyed	Cable Clamp Coupling Nut Strain Relief		IP40	Nickel			M16-5		Bayonet Lock	Thermoplastic	Black Silver	UL94 V-0	1.5 mm	Unshielded	Crimp	Contacts Not Included	For Male Pins	Circular

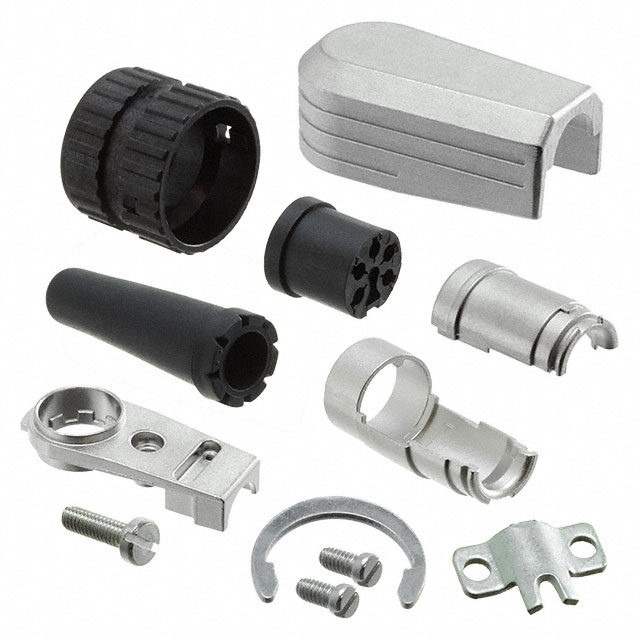

Amphenol Tuchel Industrial T 3374 055	Plug Housing	Die Cast	Free Hanging (In-Line) Right Angle	5		-40 C	100 °C	Keyed	Cable Clamp Coupling Nut Strain Relief		IP40	Nickel			M16-5		Bayonet Lock	Thermoplastic	Black Silver	UL94 V-0	1.5 mm	Unshielded	Crimp	Contacts Not Included	For Male Pins	Circular

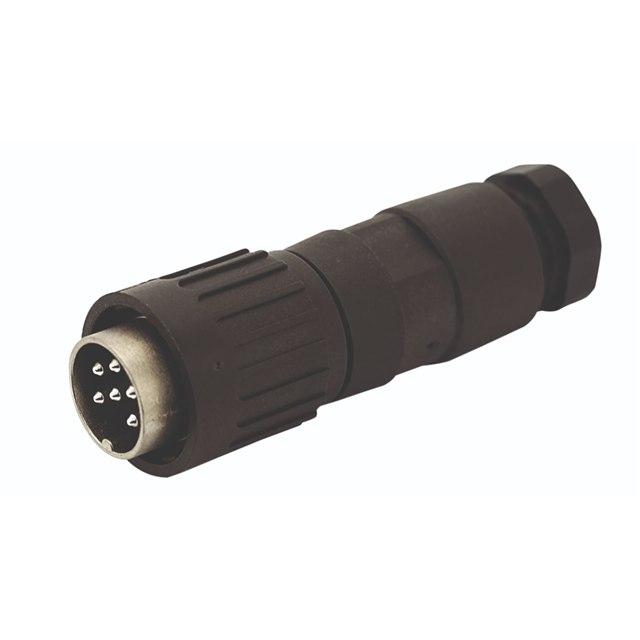

Amphenol Tuchel Industrial T 3374 552	Plug Housing	Die Cast	Free Hanging (In-Line)	5		-40 C	100 °C	Keyed	Backshell Cable Clamp Coupling Nut		IP40	Nickel			M16-5		Bayonet Lock	Thermoplastic	Black Silver	UL94 V-0	1.5 mm	Unshielded	Crimp	Contacts Not Included	For Male Pins	Circular
Amphenol Tuchel Industrial T 3374 518	Plug Male Pins	Die Cast	Free Hanging (In-Line)	5	7 A	-40 C	100 °C	Keyed	Strain Relief	Metal	IP40	Nickel	Gold	250 V	M16-5	Silver	Bayonet Lock
