SIT1630 Series

Manufacturer: SiTime

Catalog

MEMS OSC XO 0.032768MHZ SMD

Part	Supplier Device Package	Output	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Max) [Max]	Mounting Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Frequency Stability	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Base Resonator	Current - Supply (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]

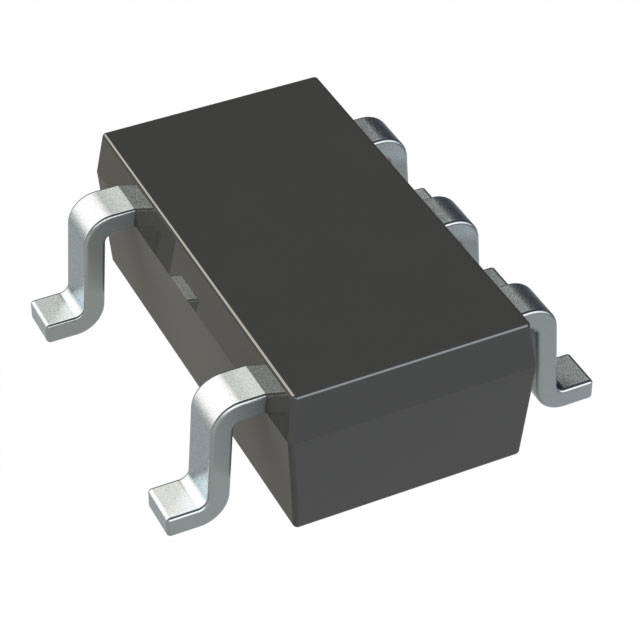

SiTime SIT1630AI-S4-DCC-32.768X	SOT-23-5	LVCMOS	SC-74A SOT-753	3.63 V	1.5 V	1.4 µA	Surface Mount	1.6 mm 2.9 mm	0.063 "	0.114 "	100 ppm	0.057 in	1.45 mm	XO (Standard)	85 °C	-40 C	0.032768 MHz	MEMS
SiTime SIT1630AE-H6-DCC-32.768D	4-SMD (2x1.2)	LVCMOS	4-SMD No Lead	3.63 V	1.5 V		Surface Mount		0.047 in	0.079 in	150 ppm			XO (Standard)	105 ░C	-40 C	0.032768 MHz	MEMS	2.8 µA	0.6 mm	0.024 in	1.2 mm	2 mm
SiTime SIT1630AI-H4-DCC-32.768E	4-SMD (2x1.2)	LVCMOS	4-SMD No Lead	3.63 V	1.5 V	2.2 µA	Surface Mount		0.047 in	0.079 in	100 ppm			XO (Standard)	85 °C	-40 C	0.032768 MHz	MEMS		0.6 mm	0.024 in	1.2 mm	2 mm
SiTime SIT1630AI-S4-DCC-32.768D	SOT-23-5	LVCMOS	SC-74A SOT-753	3.63 V	1.5 V	1.4 µA	Surface Mount	1.6 mm 2.9 mm	0.063 "	0.114 "	100 ppm	0.057 in	1.45 mm	XO (Standard)	85 °C	-40 C	0.032768 MHz	MEMS
SiTime SIT1630AI-H4-DCC-32.768G	4-SMD (2x1.2)	LVCMOS	4-SMD No Lead	3.63 V	1.5 V	1.85 µA	Surface Mount		0.047 in	0.079 in	100 ppm			XO (Standard)	85 °C	-40 C	0.032768 MHz	MEMS		0.6 mm	0.024 in	1.2 mm	2 mm
SiTime SIT1630AI-S4-DCC-32.768E	SOT-23-5	LVCMOS	SC-74A SOT-753	3.63 V	1.5 V	1.4 µA	Surface Mount	1.6 mm 2.9 mm	0.063 "	0.114 "	100 ppm	0.057 in	1.45 mm	XO (Standard)	85 °C	-40 C	0.032768 MHz	MEMS
SiTime SIT1630AI-S4-DCC-32.768T	SOT-23-5	LVCMOS	SC-74A SOT-753	3.63 V	1.5 V	1.4 µA	Surface Mount	1.6 mm 2.9 mm	0.063 "	0.114 "	100 ppm	0.057 in	1.45 mm	XO (Standard)	85 °C	-40 C	0.032768 MHz	MEMS
