YMC03 Series

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Contact Finish - Post	Style	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Color	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows [custom]	Insulation Material	Termination	Connector Type	Contact Shape	Number of Positions Loaded	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type

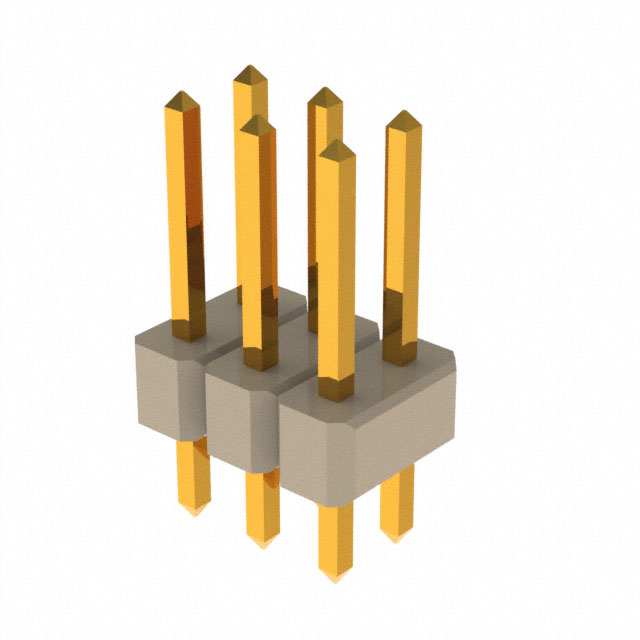

Sullins Connector Solutions YMC03DAAN	Gold	Board to Board Cable	11.43 mm	0.45 in	Gold	0.1 in	2.54 mm	3 A	Tan	Beryllium Copper	10 Áin	0.25 çm	0.76 Ám	30 Áin	Through Hole	3.05 mm	0.12 in	Male Pin	2	Polyetheretherketone (PEEK)	Solder	Header Breakaway	Square	All	6	0.1 in	2.54 mm	-65 ░C	250 °C	0.23 in	5.84 mm	Unshrouded	0.1 "	2.54 mm	UL94 V-0	Push-Pull
