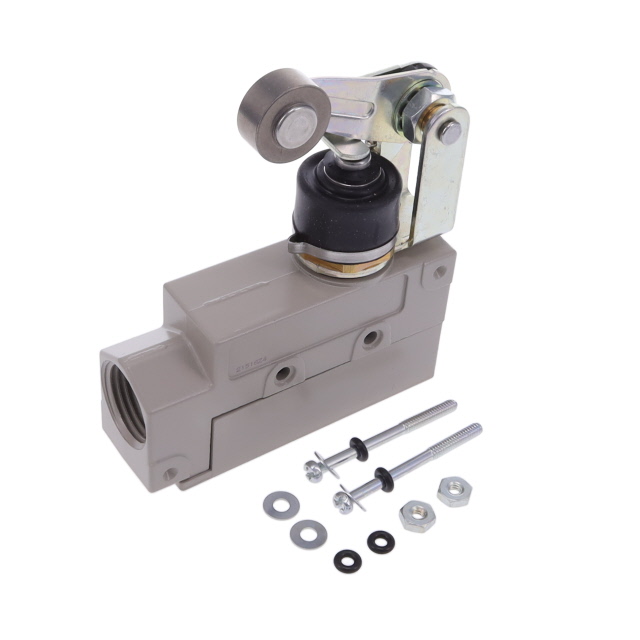

ZE-NA2 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Voltage Rating - AC | Termination Style | Circuit | Operating Force | Release Force | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Pretravel | Pretravel | Electrical Life | Voltage Rating - DC | Switch Function | Overtravel [custom] | Overtravel [custom] | Actuator Type | Mechanical Life | Current Rating (Amps) | Mounting Type | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 125 V | Screw Terminal | SPDT | 640 gf | 230 gf | -10 °C | 80 °C | IP65 - Dust Tight Water Resistant | 5 mm | 0.197 " | 500000 Cycles | 125 VDC | On-Mom | 0.235 " | 6 mm | Lever Roller | 10000000 Cycles | 15 A 500 mA | Chassis Mount | 0.016 in | 0.4 mm |
