TPS54618-Q1 Series

Automotive 2.95V to 6V, 6A, 2MHz Synchronous Buck Converter

Catalog

Automotive 2.95V to 6V, 6A, 2MHz Synchronous Buck Converter

Part	Frequency - Switching [Max]	Frequency - Switching [Min]	Number of Outputs	Current - Output	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage - Output (Max) [Max]	Mounting Type	Output Configuration	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Topology	Package / Case	Function	Grade	Qualification	Voltage - Output	Outputs and Type	Outputs and Type	Regulator Topology	Supplied Contents	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Frequency - Switching	Board Type
Texas Instruments TPS54618RTER	2 MHz	200 kHz	1	6 A	0.799 V	16-WQFN (3x3)	4.5 V	Surface Mount	Positive	6 V	2.95 V	150 °C	-40 °C	Adjustable	Buck	16-WFQFN Exposed Pad	Step-Down
Texas Instruments TPS54618QRTERQ1	2 MHz	200 kHz	1	6 A	0.799 V	16-WQFN (3x3)	4.5 V	Surface Mount	Positive	6 V	2.95 V	125 °C	-40 °C	Adjustable	Buck	16-WFQFN Exposed Pad	Step-Down	Automotive	AEC-Q100
Texas Instruments TPS54618RTET	2 MHz	200 kHz	1	6 A	0.799 V	16-WQFN (3x3)	4.5 V	Surface Mount	Positive	6 V	2.95 V	150 °C	-40 °C	Adjustable	Buck	16-WFQFN Exposed Pad	Step-Down

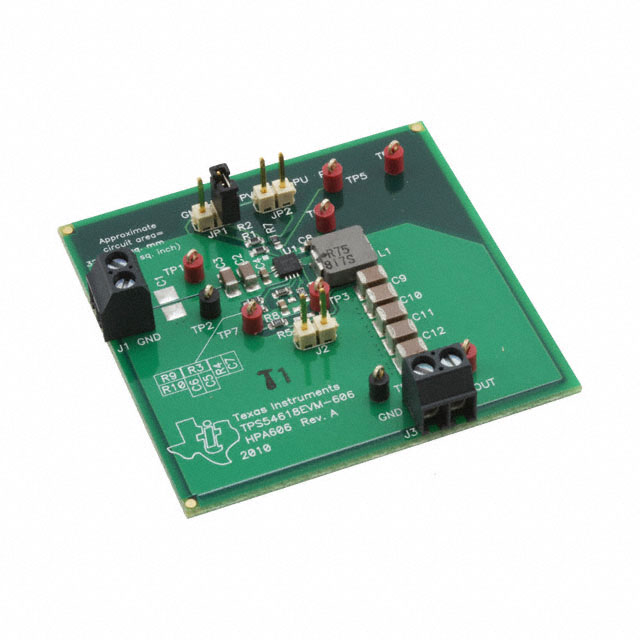

Texas Instruments TPS54618EVM-606				6 A																1.8 V	Non-Isolated	1	Buck	Board(s)	TPS54618	3 V	6 V	DC/DC Step Down	1 MHz	Fully Populated

Catalog

Automotive 2.95V to 6V, 6A, 2MHz Synchronous Buck Converter

Key Features

• Qualified for Automotive ApplicationsAEC Q-100 Qualified With the Following Results:Device Temperature Grade 1: Ambient Operating Temperature Range of –40°C to +125°CDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BTwo 12-mΩ (typical) MOSFETs for high efficiency at 6-A loads300-kHz to 2-MHz switching frequency0.8-V ±1% Voltage reference over temperature (–40°C to +150°C)Synchronizes to external clockAdjustable slow start and sequencingUV and OV power-good outputThermally enhanced 3-mm × 3-mm, 16-pin WQFN packageCreate a custom design using the TPS54618-Q1 with theWEBENCH®Power DesignerQualified for Automotive ApplicationsAEC Q-100 Qualified With the Following Results:Device Temperature Grade 1: Ambient Operating Temperature Range of –40°C to +125°CDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BTwo 12-mΩ (typical) MOSFETs for high efficiency at 6-A loads300-kHz to 2-MHz switching frequency0.8-V ±1% Voltage reference over temperature (–40°C to +150°C)Synchronizes to external clockAdjustable slow start and sequencingUV and OV power-good outputThermally enhanced 3-mm × 3-mm, 16-pin WQFN packageCreate a custom design using the TPS54618-Q1 with theWEBENCH®Power Designer

Description

The TPS54618-Q1 device is a full-featured 6-V, 6-A, synchronous step-down current-mode converter with two integrated MOSFETs. The TPS54618-Q1 enables small designs by integrating the MOSFETs, implementing current-mode control to reduce external component count, reducing inductor size by enabling up to 2-MHz switching frequency, and minimizing the IC footprint with a small, 3-mm × 3-mm, thermally-enhanced WQFN package. The TPS54618-Q1 provides accurate regulation for a variety of loads with an accurate ±1% voltage reference (VREF) over temperature. Efficiency is maximized through the integrated12-mΩ MOSFETs and 515-µA typical supply current. Using the enable pin, shutdown supply current is reduced to 5.5-µA by entering a shutdown mode. Undervoltage lockout is internally set at 2.6 V, but can be increased by programming the threshold with a resistor network on the enable pin. The output-voltage start-up ramp is controlled by the slow-start pin. An open-drain power-good signal indicates the output is within 93% to 107% of its nominal voltage. Frequency foldback and thermal shutdown protect the device during an overcurrent condition. The TPS54618-Q1 device is a full-featured 6-V, 6-A, synchronous step-down current-mode converter with two integrated MOSFETs. The TPS54618-Q1 enables small designs by integrating the MOSFETs, implementing current-mode control to reduce external component count, reducing inductor size by enabling up to 2-MHz switching frequency, and minimizing the IC footprint with a small, 3-mm × 3-mm, thermally-enhanced WQFN package. The TPS54618-Q1 provides accurate regulation for a variety of loads with an accurate ±1% voltage reference (VREF) over temperature. Efficiency is maximized through the integrated12-mΩ MOSFETs and 515-µA typical supply current. Using the enable pin, shutdown supply current is reduced to 5.5-µA by entering a shutdown mode. Undervoltage lockout is internally set at 2.6 V, but can be increased by programming the threshold with a resistor network on the enable pin. The output-voltage start-up ramp is controlled by the slow-start pin. An open-drain power-good signal indicates the output is within 93% to 107% of its nominal voltage. Frequency foldback and thermal shutdown protect the device during an overcurrent condition.
