NHD-0224 Series

Catalog

LCD MOD 48DIG 24X2 TRANSFLCT WHT

Part	Display Format [x]	Display Format [y]	Backlight	Controller Type	Viewing Area [x]	Viewing Area [y]	Text Color	Display Mode	Dot Size [custom]	Dot Size [custom]	Number of Characters	Background Color	Display Type	Interface	Character Format [x]	Character Format [y]	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Operating Temperature [Min]	Operating Temperature [Max]	Character Size [z]	Character Size [y]	Voltage - Supply [Max]	Voltage - Supply [Min]

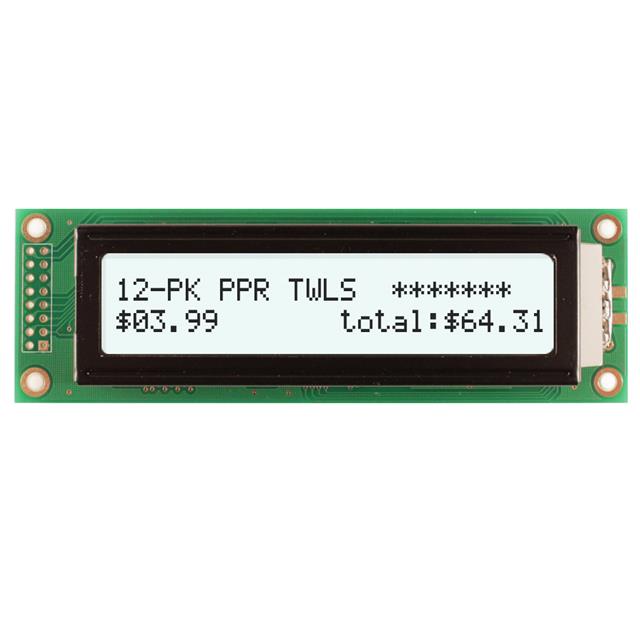

Newhaven Display Intl NHD-0224BZ1-FSW-FBW	24	2	LED - White	KS0066U	83 mm	18.6 mm	Black	Transflective	0.5 mm	0.65 mm	48	White	FSTN - Film Super-Twisted Nematic	Parallel	5 Dots	8 Dots	13.5 mm	116 mm	37 mm	-20 ░C	70 °C	5.55 mm	2.7 mm	5.5 V	4.7 V

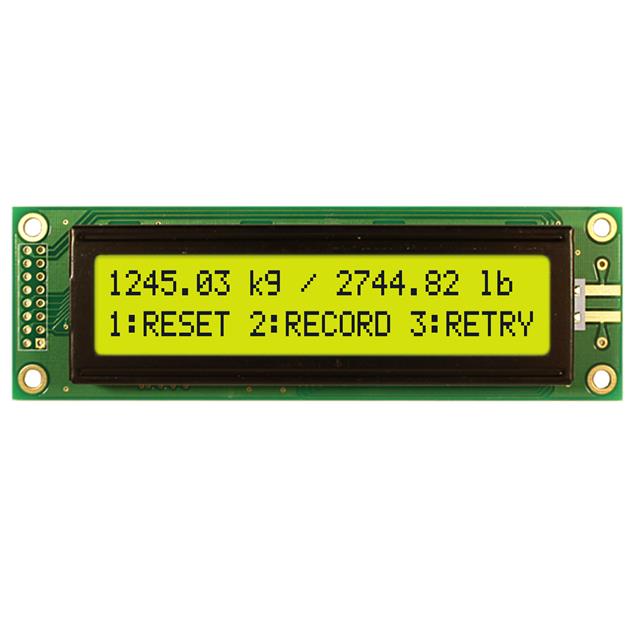

Newhaven Display Intl NHD-0224BZ-FL-GBW	24	2		KS0066U	83 mm	18.6 mm	Blue	Transflective	0.5 mm	0.65 mm	48	Green	STN - Super-Twisted Nematic	Parallel	5 Dots	8 Dots	13.5 mm	116 mm	37 mm	-20 ░C	70 °C	5.55 mm	2.7 mm	5.5 V	4.7 V

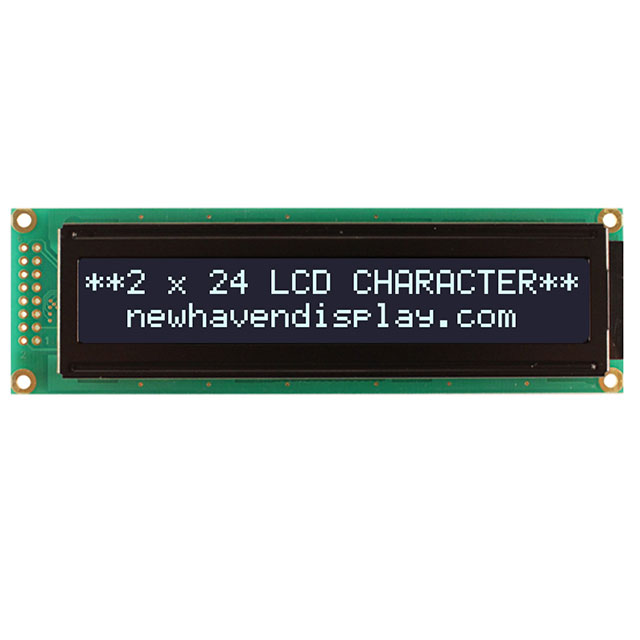

Newhaven Display Intl NHD-0224WH-ATDI-JT#	24	2	LED - White	KS0066U	94.5 mm	16 mm	White	Transmissive	0.6 mm	0.65 mm	48	Black	FFSTN - Double Film Super-Twisted Nematic	Parallel	5 Dots	8 Dots	13.6 mm	118 mm	36 mm	-20 ░C	70 °C	5.55 mm	3.2 mm	5.5 V	4.5 V

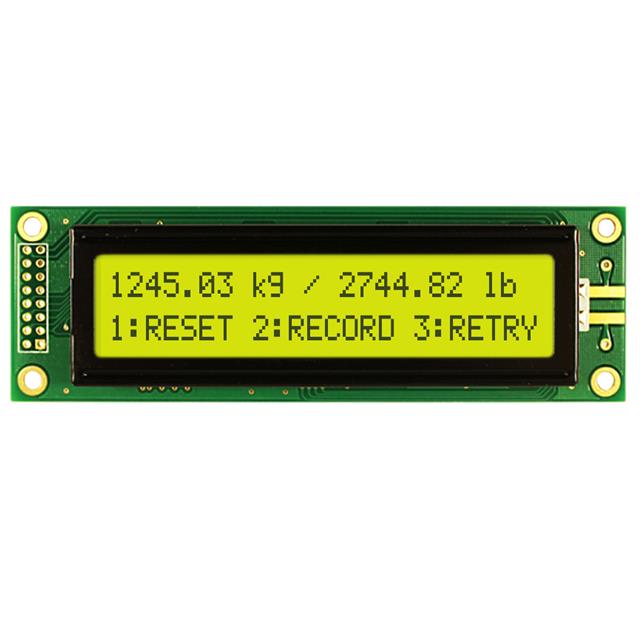

Newhaven Display Intl NHD-0224BZ-FL-YBW	24	2		KS0066U	83 mm	18.6 mm	Blue	Transflective	0.5 mm	0.65 mm	48	Green	STN - Super-Twisted Nematic	Parallel	5 Dots	8 Dots	13.5 mm	116 mm	37 mm	-20 ░C	70 °C	5.55 mm	2.7 mm	5.5 V	4.7 V

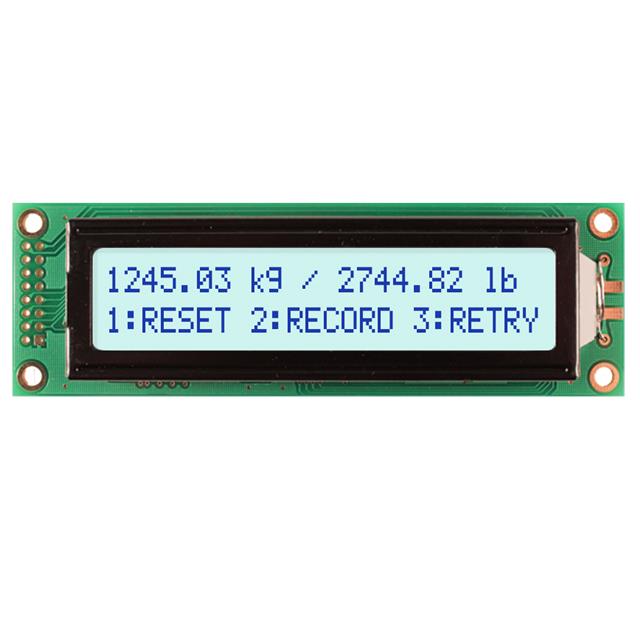

Newhaven Display Intl NHD-0224BZ-FSW-GBW	24	2	LED - White	KS0066U	83 mm	18.6 mm	Blue	Transflective	0.5 mm	0.65 mm	48	White	STN - Super-Twisted Nematic	Parallel	5 Dots	8 Dots	13.5 mm	116 mm	37 mm	-20 ░C	70 °C	5.55 mm	2.7 mm	5.5 V	4.7 V

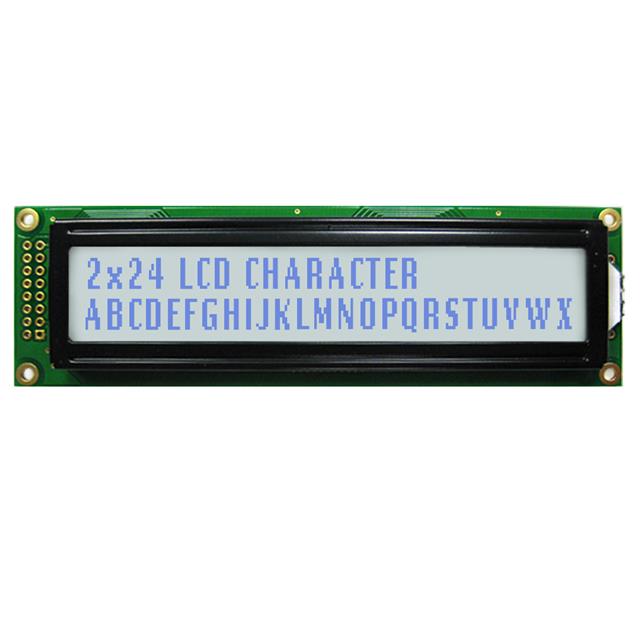

Newhaven Display Intl NHD-0224AZ-FSW-GBW	24	2	LED - White	KS0066U	94.5 mm	18 mm	Blue	Transflective	0.6 mm	0.65 mm	48	White	STN - Super-Twisted Nematic	Parallel	5 Dots	8 Dots				-20 ░C	70 °C	5.55 mm	3.2 mm	5.5 V	4.7 V
