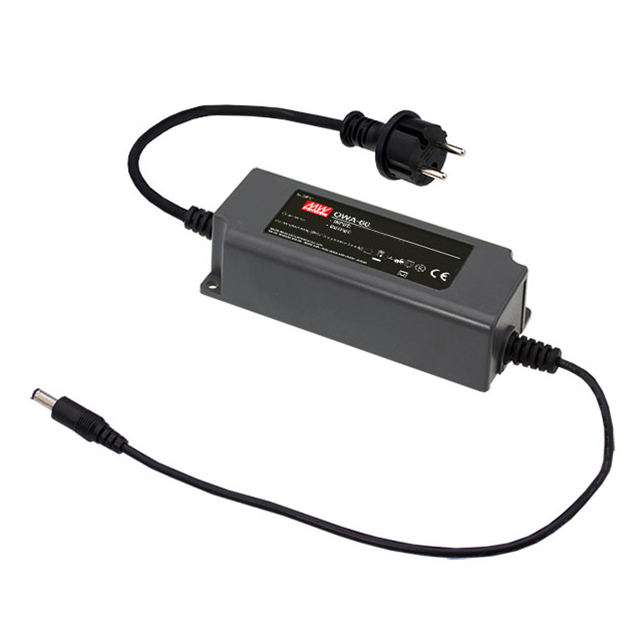

OWA-60E Series

Catalog

AC/DC DESKTOP ADAPTER 30V 60W

Part	Power (Watts)	Polarization	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Form	Output Connector [x]	Output Connector [diameter]	Output Connector	Region Utilized	Applications	Current - Output (Max) [Max]	Cord Length	Cord Length	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Voltage - Output	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Current - Output (Max)
MEAN WELL USA Inc. OWA-60E-30	60 W	Positive Center	CB CE GS	264 VAC	90 VAC	Desktop (Class II)	11 mm	2.1 mm 5.5 mm	Barrel Plug	Europe	ITE (Commercial)	2 A	11.8 "	0.3 m	Level VI	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	30 V	150 mW	-35 °C	70 °C	CEE 7/7
MEAN WELL USA Inc. OWA-60E-24	60 W	Positive Center	CB CE GS	264 VAC	90 VAC	Desktop (Class II)	11 mm	2.1 mm 5.5 mm	Barrel Plug	Europe	ITE (Commercial)	2.5 A	11.8 "	0.3 m	Level VI	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	24 V	150 mW	-35 °C	70 °C	CEE 7/7
MEAN WELL USA Inc. OWA-60E-12	60 W	Positive Center	CB CE GS	264 VAC	90 VAC	Desktop (Class II)	11 mm	2.1 mm 5.5 mm	Barrel Plug	Europe	ITE (Commercial)		11.8 "	0.3 m	Level VI	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	12 V	150 mW	-35 °C	70 °C	CEE 7/7	5 A
MEAN WELL USA Inc. OWA-60E-42	63 W	Positive Center	CB CE GS	264 VAC	90 VAC	Desktop (Class II)	11 mm	2.1 mm 5.5 mm	Barrel Plug	Europe	ITE (Commercial)	1.5 A	11.8 "	0.3 m	Level VI	53 mm	130 mm	1.38 in	5.12 in	2.09 "	35 mm	Cord	42 V	150 mW	-35 °C	70 °C	CEE 7/7
