25ET6 Series

Catalog

SWITCH TOGGLE SPDT 4A 28V

Part	Actuator Material	Voltage Rating - DC	Mounting Type	Actuator Length [x]	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Switch Function	Actuator Type	Ingress Protection	Termination Style	Features	Illumination	Current Rating (Amps)	Panel Cutout Dimensions [diameter]

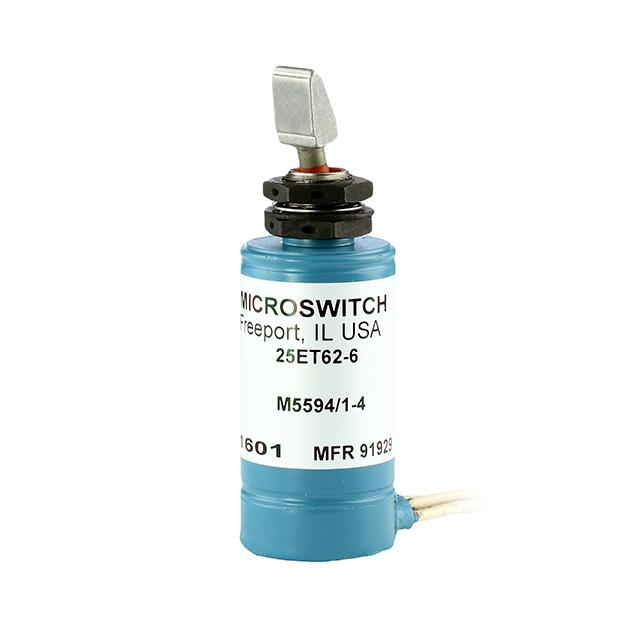

Honeywell Sensing and Productivity Solutions 25ET62-6	Anodized Aluminum	28 V	Panel Mount	17.53 mm	SPDT	-65 ░C	71 °C	15/32-32	On-Mom	Paddle	Environment Sealed	Wire Leads	Magnetic Hold	Non-Illuminated	4 A	12.4 mm

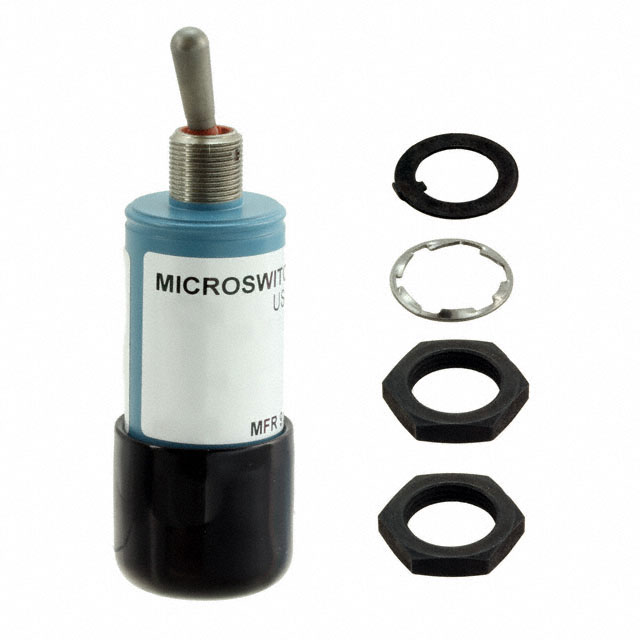

Honeywell Sensing and Productivity Solutions 25ET61-S-F		28 V	Panel Mount	25.9 mm	SPDT	-65 ░C	71 °C	15/32-32	On-Mom	Locking Lever	Environment Sealed	Screw Terminal	Magnetic Hold	Non-Illuminated	4 A	12.4 mm
Honeywell Sensing and Productivity Solutions 25ET64-6		28 V	Panel Mount	17.53 mm	SPDT	-65 ░C	71 °C	15/32-32	On-Mom	Standard Round	Environment Sealed	Wire Leads	Magnetic Hold	Non-Illuminated	4 A	12.4 mm
