7499-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

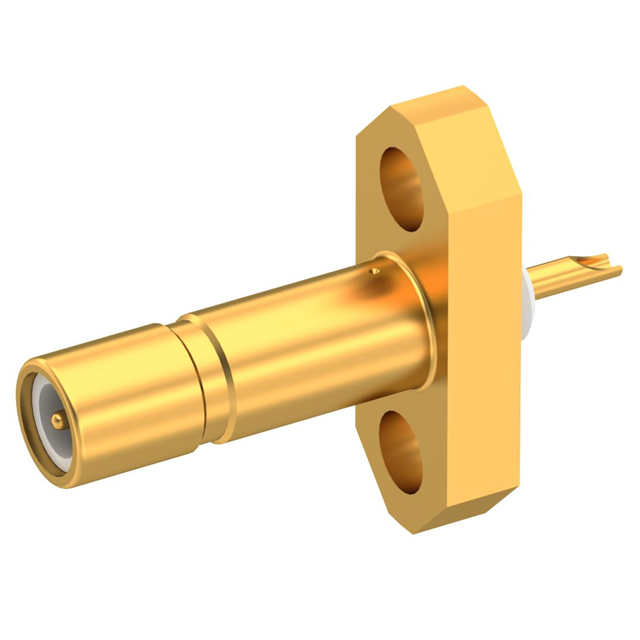

SSMB M STR NWF SP
| Part | Body Finish | Dielectric Material | Voltage Rating | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Connector Style | Shield Termination | Housing Color | Features | Impedance | Mounting Feature | Contact Termination | Connector Type | Frequency - Max [Max] | Fastening Type | Center Contact Material | Number of Ports | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 250 V | 500 | Stainless Steel | -65 ░C | 165 °C | Gold | SSMB | Solder | Gold | Extended Insulation | 50 Ohms | Flange | Solder Cup | Jack Male Pin | 12.4 GHz | Snap-On | Beryllium Copper | 1 | Panel Mount |
