ALD18F Series

Isolated DC/DC Converters - SMD 50W 3.3V@18A 36-75Vin NEG

Manufacturer: ARTESYN / Advanced Energy

Catalog

Isolated DC/DC Converters - SMD 50W 3.3V@18A 36-75Vin NEG

Catalog

Isolated DC/DC Converters - SMD 50W 3.3V@18A 36-75Vin NEG

Part	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Efficiency	Type	Features	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation
ARTESYN / Advanced Energy ALD18F48N-6L	ITE (Commercial)	8-DIP Module	85 °C	-40 C	60 W	90 %	Non-Isolated PoL Module	OCP OTP OVP Remote On/Off UVLO	1	75 V	3.3 V	36 V	Through Hole	18 A	22.9 mm	1.3 in	0.35 in	0.9 in	8.9 mm	33 mm

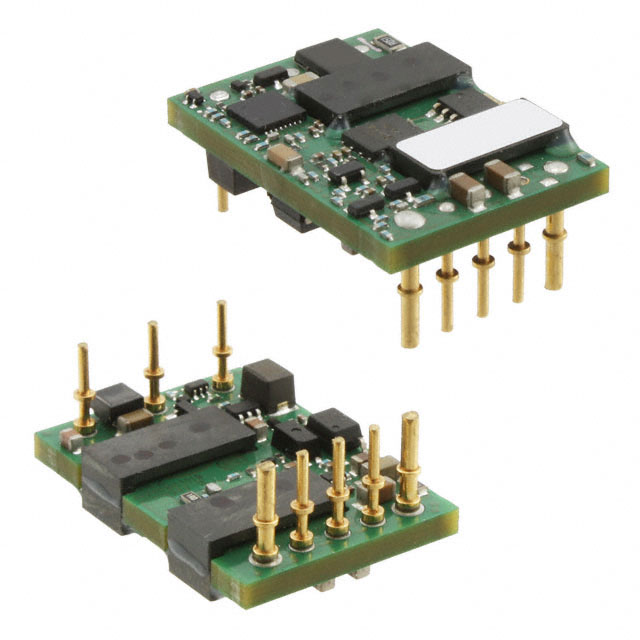

ARTESYN / Advanced Energy ALD18F48N-L	ITE (Commercial)	8-DIP Module	85 °C	-40 C	60 W	90 %	Non-Isolated PoL Module	OCP OTP OVP Remote On/Off UVLO	1	75 V	3.3 V	36 V	Through Hole	18 A	22.9 mm	1.3 in	0.35 in	0.9 in	8.9 mm	33 mm
ARTESYN / Advanced Energy ALD18F48N-SL	ITE (Commercial)	8-SMD Module 1/16 Brick	85 °C	-40 C	60 W	90 %	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	75 V	3.3 V	36 V	Surface Mount	18 A	22.9 mm	1.3 in	0.35 in	0.9 in	8.8 mm	33 mm	1.5 kV
ARTESYN / Advanced Energy ALD18F48-L	ITE (Commercial)	8-DIP Module 1/16 Brick	85 °C	-40 C	60 W	90 %	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	75 V	3.3 V	36 V	Through Hole	18 A	22.9 mm	1.3 in	0.35 in	0.9 in	8.8 mm	33 mm	1.5 kV
ARTESYN / Advanced Energy ALD18F48-SL	ITE (Commercial)	8-SMD Module 1/16 Brick	85 °C	-40 C	60 W	90 %	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	75 V	3.3 V	36 V	Surface Mount	18 A	22.9 mm	1.3 in	0.35 in	0.9 in	8.8 mm	33 mm	1.5 kV
