HM1L41 Series

Catalog

METRAL HDR RA STB 4X6

Part	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Connector Style	Features	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Termination	Number of Positions	Number of Positions Loaded
Amphenol ICC (FCI) HM1L41LAP000H6P	UL94 V-0	-55 C	125 °C	All	High Speed	Board Guide	Natural	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Solder	24
Amphenol ICC (FCI) HM1L41DDP000H6PLF	UL94 V-0	-55 C	125 °C	All		Board Guide	Natural White	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Press-Fit	24
Amphenol ICC (FCI) HM1L41BAP000H6PLF	UL94 V-0	-55 C	125 °C	All		Board Guide	Natural	Gold	50 µin	1.27 µm	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Solder	24
Amphenol ICC (FCI) HM1L41DDP485H6PLF	UL94 V-0	-55 C	125 °C	All		Board Guide	Natural	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Press-Fit	24
Amphenol ICC (FCI) HM1L41DAP000H6PLF	UL94 V-0	-55 C	125 °C	All		Board Guide	Natural White	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Solder	24
Amphenol ICC (FCI) HM1L41AAP000H6P	UL94 V-0	-55 C	125 °C	All	High Speed	Board Guide	Natural	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Solder	24
Amphenol ICC (FCI) HM1L41LDP000H6P	UL94 V-0	-55 C	125 °C	All		Board Guide	Natural	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Press-Fit	24
Amphenol ICC (FCI) HM1L41LDP000H6PLF	UL94 V-0	-55 C	125 °C	All		Board Guide	Natural White	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Press-Fit	24

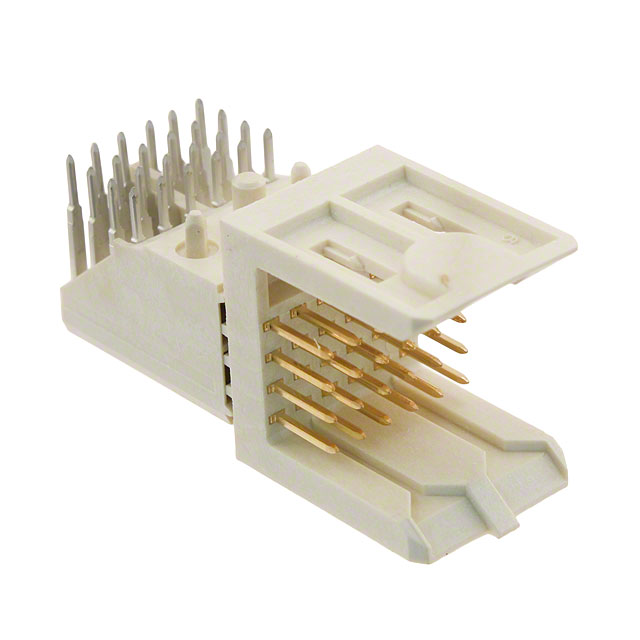

Amphenol ICC (FCI) HM1L41AAP000H6PLF	UL94 V-0	-55 C	125 °C	All		Board Guide	Natural White	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Solder	24
Amphenol ICC (FCI) HM1L41ZAP240H6PLF	UL94 V-0	-55 C	125 °C			Board Guide	Natural	Gold	30 Áin	0.76 Ám	Header Male Pins	0.079 in	2 mm	Board Edge Right Angle Through Hole	Solder	24	17
