80142 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

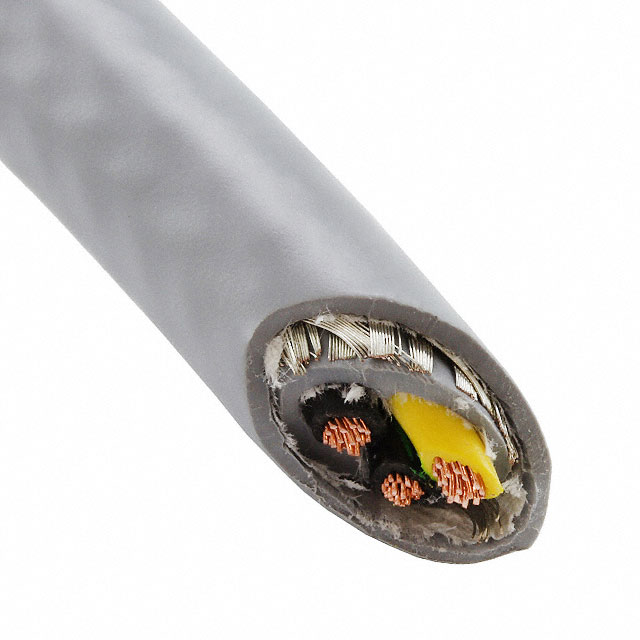

CABLE 3CON 16AWG SLATE SHLD 100'
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Shield Material | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Number of Conductors | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Type | Jacket Color | Shield Coverage | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 °C | -50 °C | 16 AWG | 6.83 mm | 0.269 in | 600 V | Copper Tinned | 30.5 m | 100 ft | 0.0319 in | 0.81 mm | Multi-Conductor | 3 | Polyphenylene Ether (PPE) | 34 AWG | 65 | Polyurethane (PU) | Braid | Slate | 85 % | Copper Tinned |
