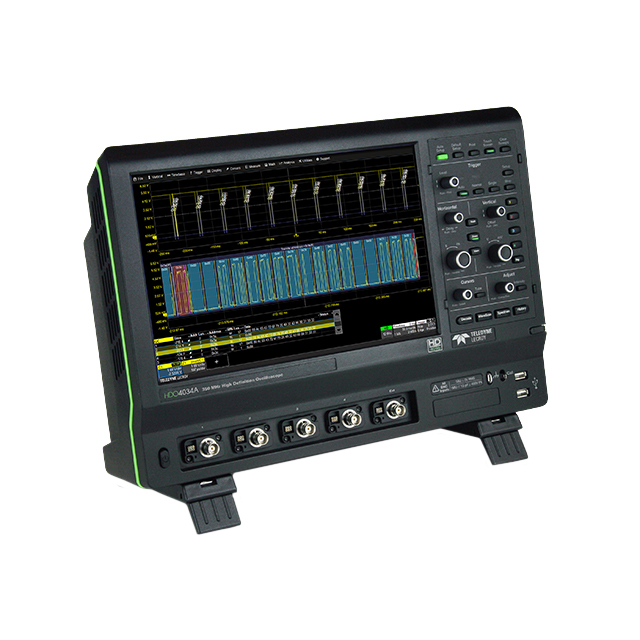

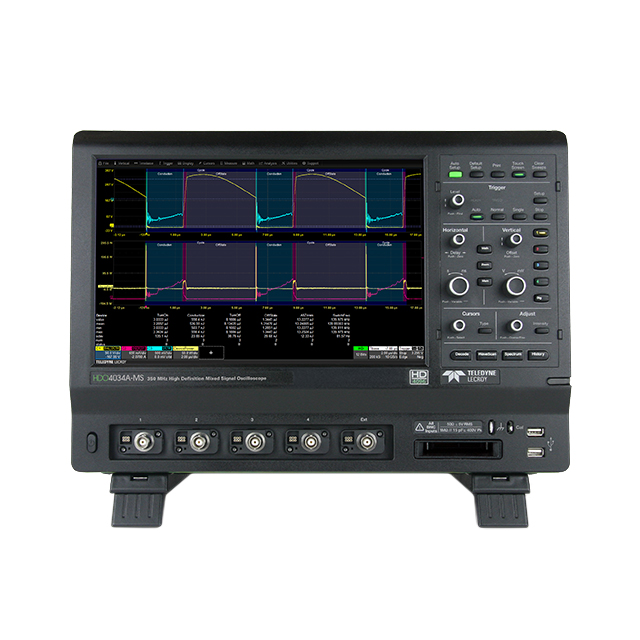

HDO4034 Series
Manufacturer: Teledyne LeCroy
Beta
⌘K
MSO / MDO OSCILLOSCOPE, W/MS, HDO4000A SERIES, 4 ANALOG, 16 DIGITAL, 350 MHZ, 10 GSPS, 12.5 MPTS
| Part | Includes | Probe Type | Bandwidth | Memory Size | Display Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Rise Time (Typ) | Input Impedance | Voltage - Input (Max) [Max] | Interface | Function | Channels [custom] | Channels [custom] | Sampling Rate (Per Second) | Type | Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Teledyne LeCroy | Case USB Adapter Cable | Passive 10:1 | 350 MHz | 12.5 Mpts | LCD - Color (Touch) | 240 VAC | 100 VAC | 1 ns | 1 M 12 pF | 400 VDC | Ethernet GPIB USB | Playback Record Save Trend | 16 | 4 | 10 G per second | Bench Digital | |
 Teledyne LeCroy | Case USB Adapter Cable | Passive 10:1 | 350 MHz | 12.5 Mpts | LCD - Color (Touch) | 240 VAC | 100 VAC | 1 ns | 1 M 12 pF | 400 VDC | Ethernet GPIB USB | Playback Record Save Trend | 10 G per second | Bench Digital | 4 Analog |
