MEB-1K2 Series
Manufacturer: Delta Electronics
Beta
⌘K

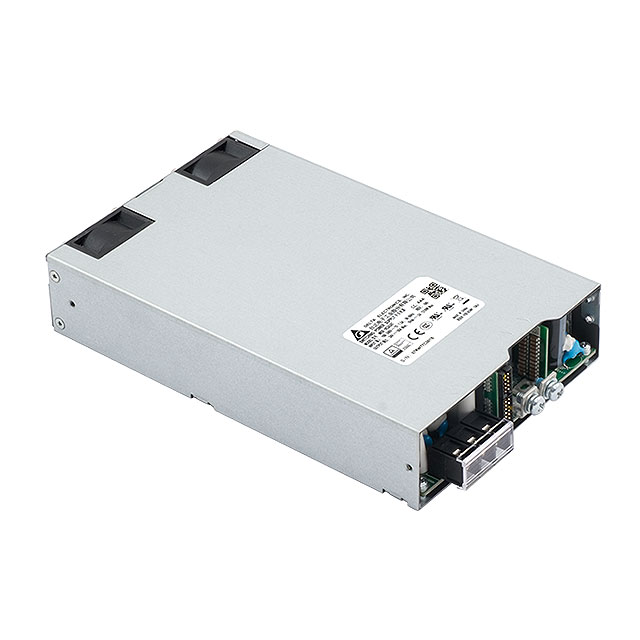

AC/DC POWER SUPPLY SINGLE-OUT 48V 25A 1200W CARTON
| Part | Minimum Load Required | Voltage - Output 1 | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Features | Standard Number | Voltage - Isolation | Number of Outputs | Mounting Type | Approval Agency | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Efficiency | Standard Number | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 48 V | Conformal Coated Enclosed | 1.59 in | 5 in | 8.03 in | 5 in | 40.5 mm | 204 mm | 1200 W | Adjustable Output Load Sharing PFC PMBus™ Remote On/Off Standby Output Universal Input | 50581 55011 55032 60950-1 | 4000 V | 1 | Chassis Mount | CB Scheme CE EN SIQ TUV UL | 25 A | 70 °C | -20 °C | ITE (Commercial) Medical | 94 % | |||
 Delta Electronics | 24 V | Conformal Coated Enclosed | 1.59 in | 5 in | 8.03 in | 5 in | 40.5 mm | 204 mm | 1200 W | Adjustable Output PFC PMBus™ Remote On/Off Standby Output Universal Input | 4000 V | 1 | Chassis Mount | CB Scheme CE EN SIQ TUV UL | 50 A | 70 °C | -20 °C | ITE (Commercial) Medical | 93 % | 50581 | 60950-1 |
