AW24TH Series
Manufacturer: Artaflex Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD 802.15.4 CHIP SMD
| Part | Package / Case | Protocol | Sensitivity | Memory Type | Memory Size (SRAM) | Memory Size (Flash) | Serial Interfaces | Current - Receiving | Current - Transmitting | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Power - Output | Frequency | Antenna Type | RF Family/Standard | Operating Temperature (Min) | Operating Temperature (Max) | Data Rate | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

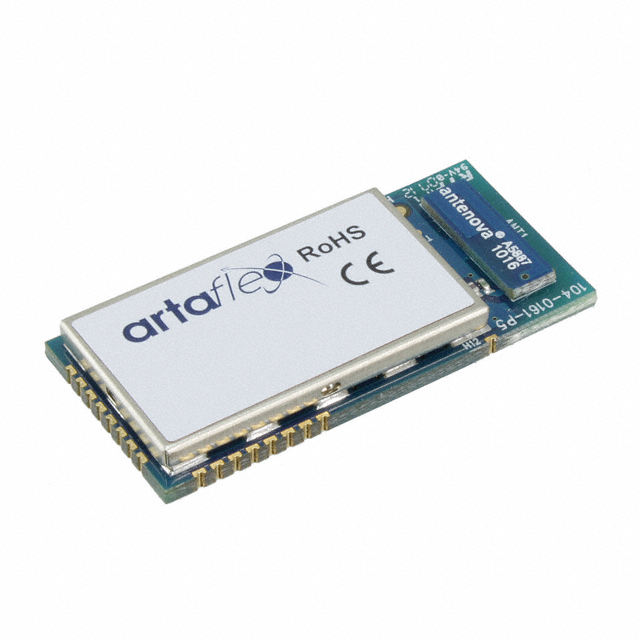

 Artaflex Inc. | Module | Zigbee® | -105 dBm | Flash SRAM | 8 kB | 256 KB | SPI UART | 24 mA | 29 mA | 3.6 V | 2.7 V | 24.2 dBm | 2.4 GHz | Chip Integrated | 802.15.4 | -40 °C | 85 °C | 250 Kbps | Surface Mount |

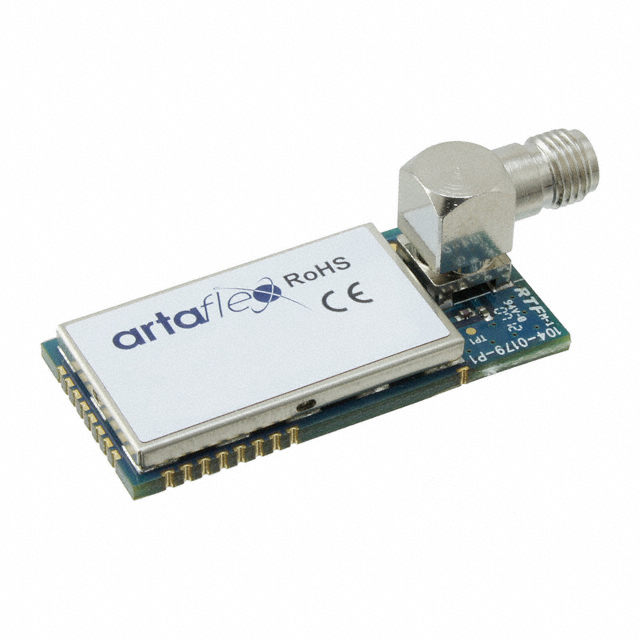

 Artaflex Inc. | Module | Zigbee® | -105 dBm | Flash SRAM | 8 kB | 256 KB | SPI UART | 24 mA | 29 mA | 3.6 V | 2.7 V | 24.2 dBm | 2.4 GHz | Antenna Not Included SMA | 802.15.4 | -40 °C | 85 °C | 250 Kbps | Surface Mount |

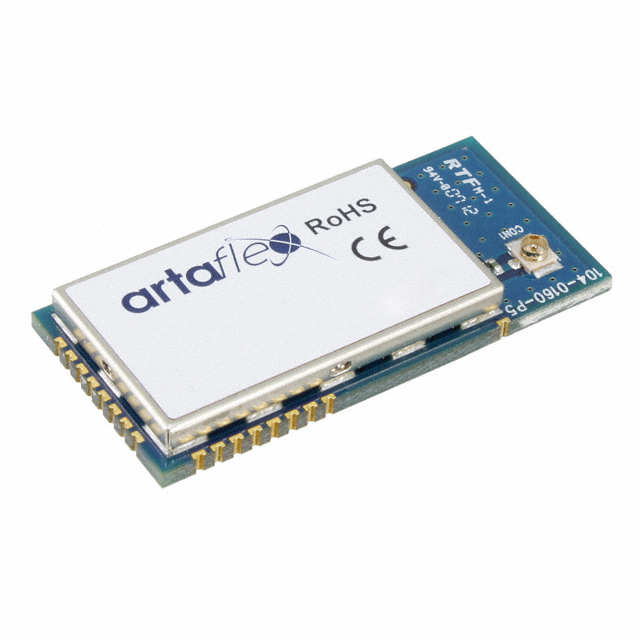

 Artaflex Inc. | Module | Zigbee® | -105 dBm | Flash SRAM | 8 kB | 256 KB | SPI UART | 24 mA | 29 mA | 3.6 V | 2.7 V | 24.2 dBm | 2.4 GHz | Antenna Not Included U.FL | 802.15.4 | -40 °C | 85 °C | 250 Kbps | Surface Mount |
