AOZ1236 Series

Catalog

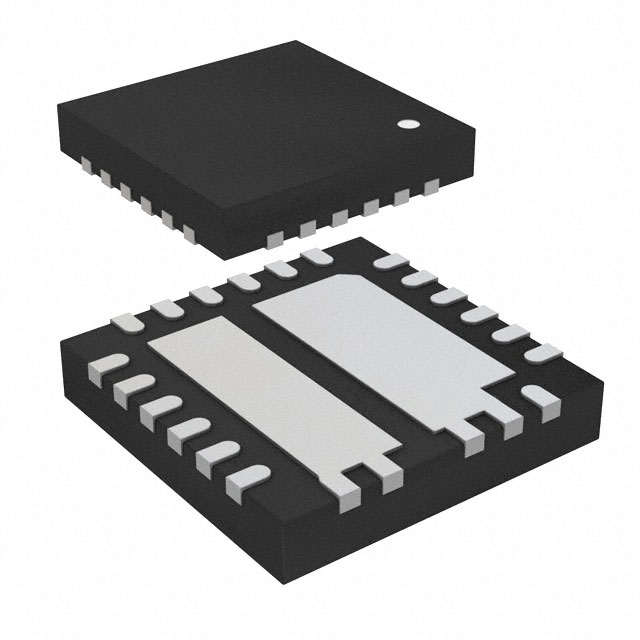

IC REG BUCK ADJ 6A 23QFNA

Part	Output Configuration	Number of Outputs	Package / Case	Voltage - Output (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Current - Output	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Function	Topology	Synchronous Rectifier	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Type
Alpha & Omega Semiconductor Inc. AOZ1236QI-02	Positive	1	23-PowerTFQFN	20.4 V	Surface Mount	0.8 V	6 A	2.7 V	85 C	-40 ¯C	24 V	Step-Down	Buck		23-QFNA (4x4)	1 MHz	200 kHz	Adjustable
Alpha & Omega Semiconductor Inc. AOZ1236QI-03			23-PowerTFQFN		Surface Mount										23-QFNA (4x4)
