726-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K

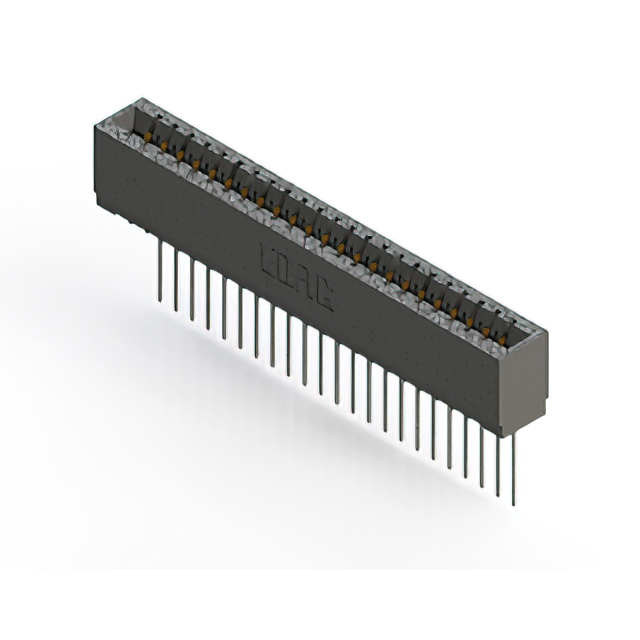

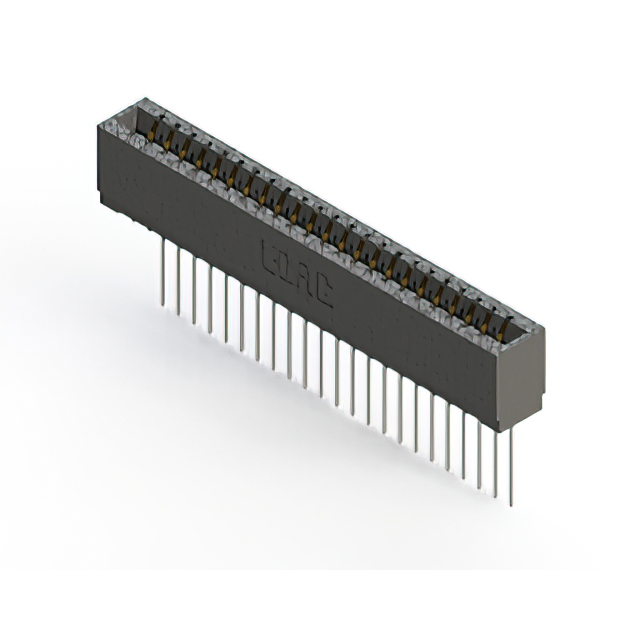

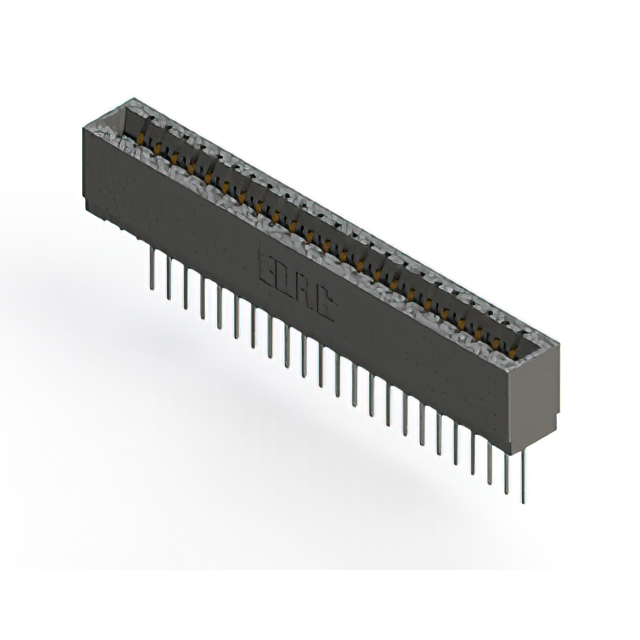

CONN EDGE SGL FMALE 23POS 0.125
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Read Out | Color | Gender | Mounting Type | Contact Type | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Type | Pitch | Pitch | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 23 | Single | Black | Female | Through Hole | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | -40 C | 105 ░C | 1 | 30 Áin | 0.76 Ám | Press-Fit | Non Specified - Single Edge | 3.18 mm | 0.125 in | Gold |
 EDAC Inc. | 1 | Polyester Thermoplastic | 23 | Single | Black | Female | Through Hole | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | -40 C | 105 ░C | 1 | 30 Áin | 0.76 Ám | Press-Fit | Non Specified - Single Edge | 3.18 mm | 0.125 in | Gold |
 EDAC Inc. | 1 | Polyester Thermoplastic | 23 | Single | Black | Female | Through Hole | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | -40 C | 105 ░C | 1 | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 3.18 mm | 0.125 in | Gold |
 EDAC Inc. | 1 | Polyester Thermoplastic | 23 | Single | Black | Female | Through Hole | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | -40 C | 105 ░C | 1 | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 3.18 mm | 0.125 in | Gold |
 EDAC Inc. | 1 | Polyester Thermoplastic | 23 | Single | Black | Female | Through Hole | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | -40 C | 105 ░C | 1 | 30 Áin | 0.76 Ám | Press-Fit | Non Specified - Single Edge | 3.18 mm | 0.125 in | Gold |
 EDAC Inc. | 1 | Polyester Thermoplastic | 23 | Single | Black | Female | Through Hole | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | -40 C | 105 ░C | 1 | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 3.18 mm | 0.125 in | Gold |
 EDAC Inc. | 1 | Polyester Thermoplastic | 23 | Single | Black | Female | Through Hole | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | -40 C | 105 ░C | 1 | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 3.18 mm | 0.125 in | Gold |
