JWL22R Series
Manufacturer: NKK Switches
Beta
⌘K

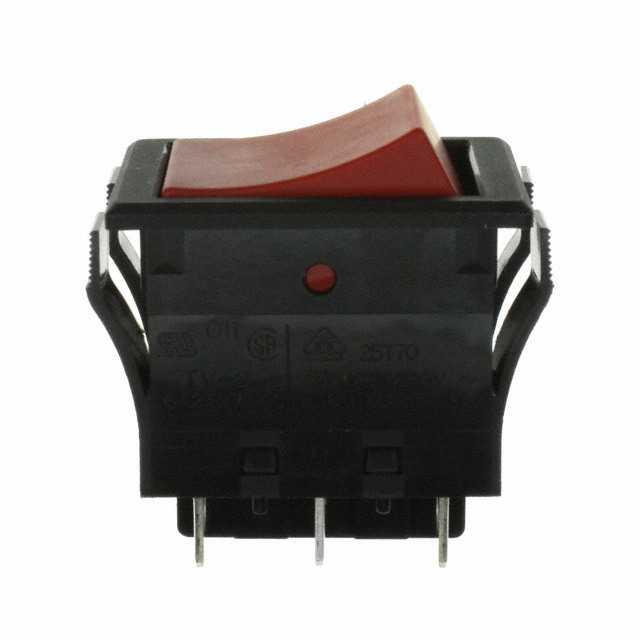

SWITCH ROCKER DPDT 16A 125V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Ingress Protection | Circuit | Actuator Type | Approval Agency | Color - Actuator/Cap | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Features | Voltage Rating - AC | Mounting Type | Termination Style | Termination Style | Termination Style | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | No Marking | Dust Proof | DPDT | Concave (Curved) | CSA UL VDE | Red | On-On | 20.5 mm | 29.5 mm | Epoxy Sealed Terminals | 125 V | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | 16 A | -25 °C | 70 °C |
NKK Switches | 25000 Steps | 25000 Steps | No Marking | Dust Proof | DPDT | Concave (Curved) | CSA UL VDE | Black | On-On | 20.5 mm | 29.5 mm | Epoxy Sealed Terminals | 125 V | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | 16 A | -25 °C | 70 °C |
NKK Switches | 25000 Steps | 25000 Steps | No Marking | Dust Proof | DPDT | Concave (Curved) | CSA UL VDE | Red | On-On | 20.5 mm | 29.5 mm | Epoxy Sealed Terminals | 125 V | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | 16 A | -25 °C | 70 °C |
 NKK Switches | 25000 Steps | 25000 Steps | No Marking | Dust Proof | DPDT | Concave (Curved) | CSA UL VDE | Red | On-On | 20.5 mm | 29.5 mm | Epoxy Sealed Terminals | 125 V | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | 16 A | -25 °C | 70 °C |
 NKK Switches | 25000 Steps | 25000 Steps | No Marking | Dust Proof | DPDT | Concave (Curved) | CSA UL VDE | Black | On-On | 20.5 mm | 29.5 mm | Epoxy Sealed Terminals | 125 V | Panel Mount Snap-In | 4.7 mm | 0.187 in | Solder Quick Connect | 16 A | -25 °C | 70 °C |
