100065 Series

Catalog

CABLE MICROCOAX 42AWG 5'/SPOOL

Part	Conductor Strand	Length	Length	Cable Type	Jacket Color	Dielectric Material	Wire Gauge	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Length [x]	Length [x]	Conductor Strand	Impedance
Molex - Temp Flex 1000650073	Solid	3.05 m	10 ft	Micro Coaxial	Black	Perfluoroalkoxy (PFA)	44 AWG	Perfluoroalkoxy (PFA)	0.15 mm	0.006 in	Copper Silver Coated	Copper Tinned	0.25 mm	0.01 in	Spiral
Molex - Temp Flex 1000650089				Micro Coaxial	Black	Perfluoroalkoxy (PFA)	44 AWG	Perfluoroalkoxy (PFA)	0.1 mm	0.004 in	Copper Alloy Silver Coated	Copper Tinned	0.2 mm	0.008 in	Braid
Molex - Temp Flex 1000650092
Molex - Temp Flex 1000650088	Solid	3.05 m 7.62 m 30.48 m	10 ft 25 ft 100 '	Micro Coaxial	Black	Perfluoroalkoxy (PFA)	40 AWG	Perfluoroalkoxy (PFA)	0.203 mm	0.008 in	Copper Silver Coated	Copper Tinned	0.36 mm	0.014 in	Spiral	1 ' 50 ft	15.24 m 300 mm
Molex - Temp Flex 1000650074	Solid	30.48 m	100 '	Micro Coaxial	Black	Perfluoroalkoxy (PFA)	44 AWG	Perfluoroalkoxy (PFA)	0.13 mm	0.005 in	Copper Silver Coated	Copper Tinned	0.23 mm	0.009 in	Spiral
Molex - Temp Flex 1000650023		30.48 m 60.96 m	100 '	Micro Coaxial	Blue	Perfluoroalkoxy (PFA)	44 AWG	Perfluoroalkoxy (PFA)	0.203 mm	0.008 in	Copper Silver Coated	Copper Silver Coated	0.33 mm	0.013 "	Spiral	1 ' 200 ft	300 mm	7 Strands 48 AWG	50 Ohms
Molex - Temp Flex 1000650095

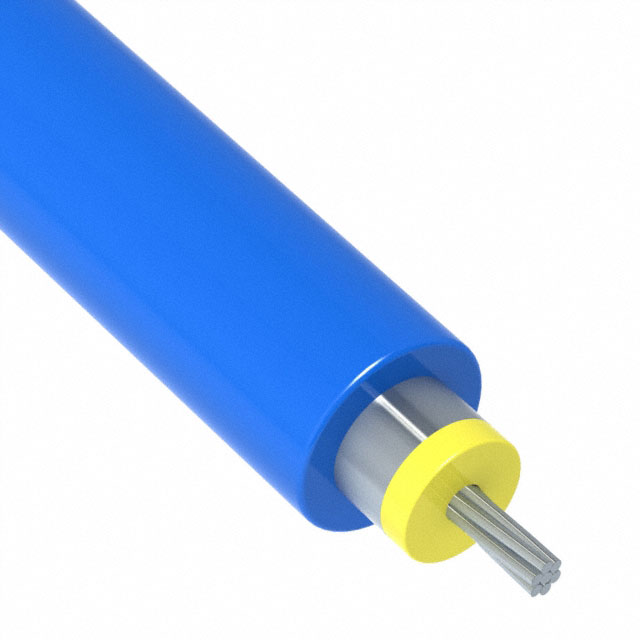

Molex - Temp Flex 100065-0023		3.05 m	10 ft	Micro Coaxial	Blue	Perfluoroalkoxy (PFA)	44 AWG	Perfluoroalkoxy (PFA)	0.203 mm	0.008 in	Copper Silver Coated	Copper Silver Coated	0.33 mm	0.013 "	Spiral			7 Strands 48 AWG	50 Ohms
