745-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.100

Part	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Card Type	Color	Contact Finish	Termination Rows [custom]	Pitch	Pitch	Gender	Contact Material	Mounting Type	Termination	Read Out	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Positions [custom]	Contact Type
EDAC Inc. 745-084-522-201	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever
EDAC Inc. 745-084-540-206	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever
EDAC Inc. 745-084-520-201	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever

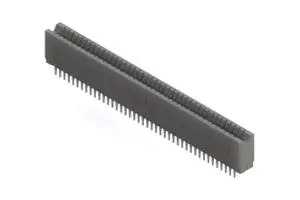

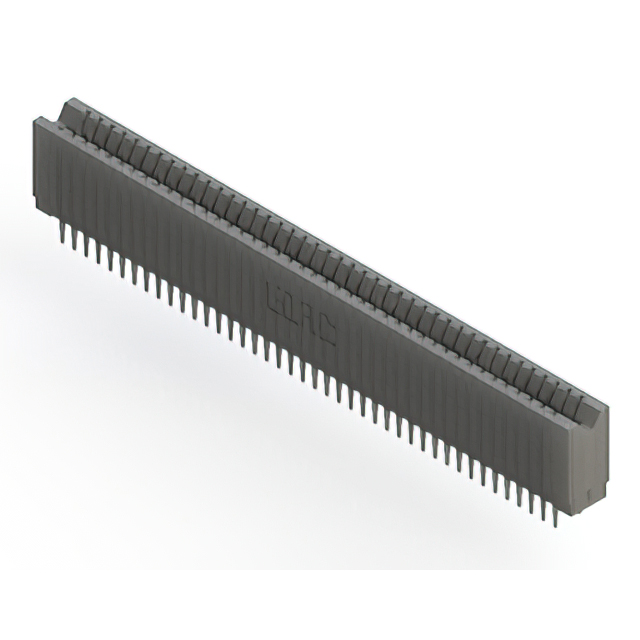

EDAC Inc. 745-084-520-206	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever
EDAC Inc. 745-084-541-201	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever
EDAC Inc. 745-084-540-201	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever
EDAC Inc. 745-084-545-201	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever

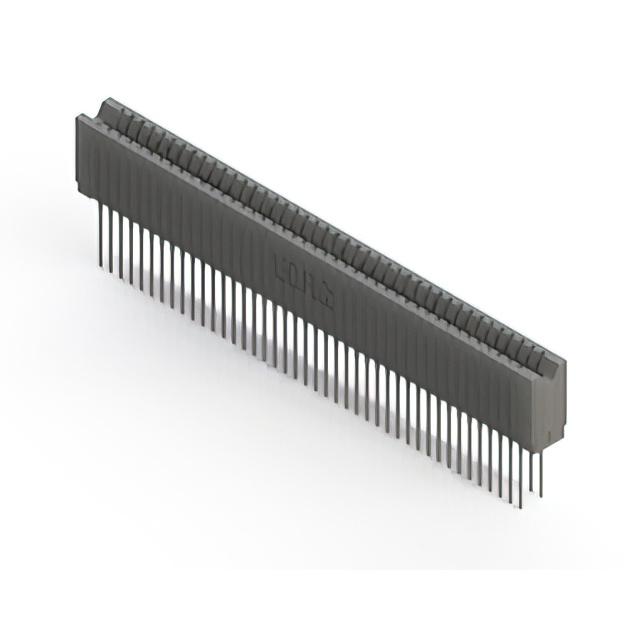

EDAC Inc. 745-084-541-206	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Black	Gold	2	0.1 "	2.54 mm	Female	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Dual	Polyester Thermoplastic	30 Áin	0.76 Ám	2	84	Cantilever
