4540B Series

Catalog

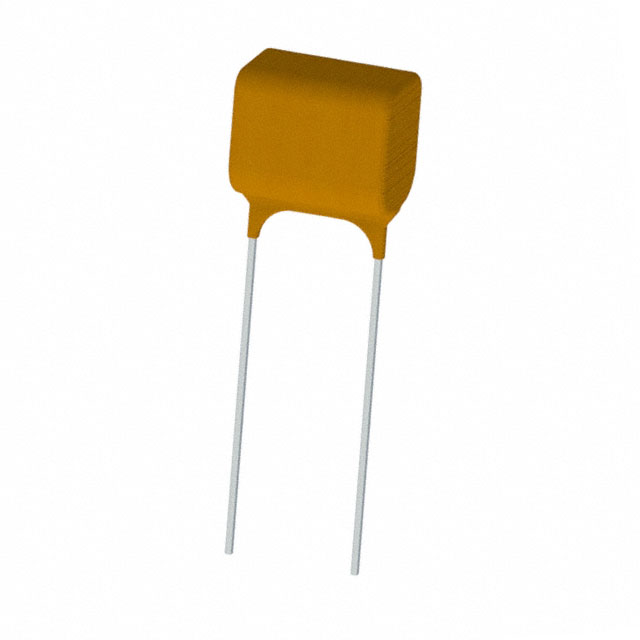

CAP CER 6800PF 6KV X7R RAD

Part	Mounting Type	Lead Spacing	Lead Spacing	Features	Applications	Voltage - Rated	Voltage - Rated	Tolerance	Lead Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
Knowles Syfer 4540B682K602LE	Through Hole	0.48 in	12.2 mm	High Voltage	General Purpose	6000 V	6 kV	10 %	Straight	15.2 mm	0.402 in	10.2 mm	0.598 "	17.18 mm	0.676 "	X7R	6800 pF	-55 C	125 °C	Radial
Knowles Syfer 4540B152K103LE	Through Hole	0.48 in	12.2 mm	High Voltage	General Purpose	10 kV	10 kV	10 %	Straight	15.2 mm	0.402 in	10.2 mm	0.598 "	17.18 mm	0.676 "	X7R	1500 pF	-55 C	125 °C	Radial
Knowles Syfer 4540B222K103LE	Through Hole	0.48 in	12.2 mm	High Voltage	General Purpose	10 kV	10 kV	10 %	Straight	15.2 mm	0.402 in	10.2 mm	0.598 "	17.18 mm	0.676 "	X7R	2200 pF	-55 C	125 °C	Radial
