ADS7854 Series
Manufacturer: Texas Instruments
Beta
⌘K

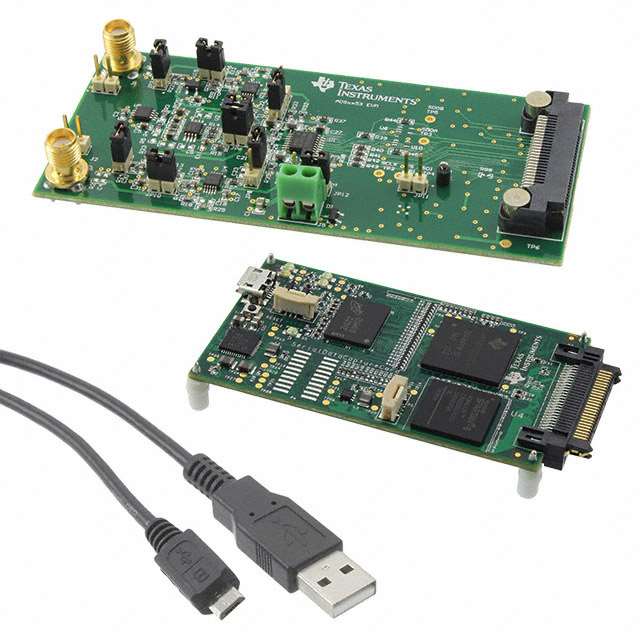

EVAL BOARD 14BIT 1MSPS 2CH ADC
| Part | Sampling Rate (Per Second) | Power (Typ) @ Conditions | Supplied Contents | Utilized IC / Part | Number of Bits | Data Interface | Number of A/D Converters | Input Range [Min] | Input Range [Max] | Reference Type | Input Type | Package / Case | Features | Ratio - S/H:ADC | Voltage - Supply, Analog | Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Architecture | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of Inputs | Supplier Device Package | Package / Case [x] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 M | 42.5 mW | Board(s) Cable(s) | ADS7854 | 14 | Serial | 2 | -2 xVREF | 2 Vpp | |||||||||||||||||
 Texas Instruments | 1 M | 14 | SPI | 2 | Internal | Differential | 16-WFQFN Exposed Pad | Simultaneous Sampling | 1:1 | 5 V | S/H-ADC | 125 °C | -40 °C | Surface Mount | SAR | 5.5 V | 1.65 V | 2 | 16-WQFN (3x3) | |||||||
 Texas Instruments | 1 M | 14 | SPI | 2 | Internal | Differential | 16-WFQFN Exposed Pad | Simultaneous Sampling | 1:1 | 5 V | S/H-ADC | 125 °C | -40 °C | Surface Mount | SAR | 5.5 V | 1.65 V | 2 | 16-WQFN (3x3) | |||||||
 Texas Instruments | 1 M | 14 | SPI | 2 | Internal | Differential | 16-TSSOP | Simultaneous Sampling | 1:1 | 5 V | S/H-ADC | 125 °C | -40 °C | Surface Mount | SAR | 5.5 V | 1.65 V | 2 | 16-TSSOP | 0.173 in | 4.4 mm |
