174820 Series

Catalog

1.25FP,P10,SL,B,N,BG,5.00,5.80 ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Insulation Color	Contact Shape	Number of Rows	Current Rating (Amps)	Contact Material	Voltage Rating	Contact Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Connector Type	Insulation Height	Insulation Height	Contact Finish - Post	Mounting Type	Insulation Material	Fastening Type	Number of Positions	Shrouding	Features	Insulation Height [z]	Insulation Height [z]
TE Connectivity AMP Connectors 4-174820-0	5 mm 5.8 mm	Black	Circular	1	0.5 A	Brass	50 V	Male Pin	Solder	-30 ░C	105 ░C	0.049 in	1.25 mm	All	Header	0.156 in	3.96 mm	Tin	Surface Mount	Polyphenylene Sulfide (PPS)	Push-Pull	10	Shrouded - 4 Wall	Board Guide
TE Connectivity AMP Connectors 3-174820-4	5 mm 5.8 mm	Black	Circular	1	0.5 A	Brass	50 V	Male Pin	Solder	-30 ░C	105 ░C	0.049 in	1.25 mm	All	Header	0.156 in	3.96 mm	Tin	Surface Mount	Polyphenylene Sulfide (PPS)	Push-Pull	4	Shrouded - 4 Wall	Board Guide

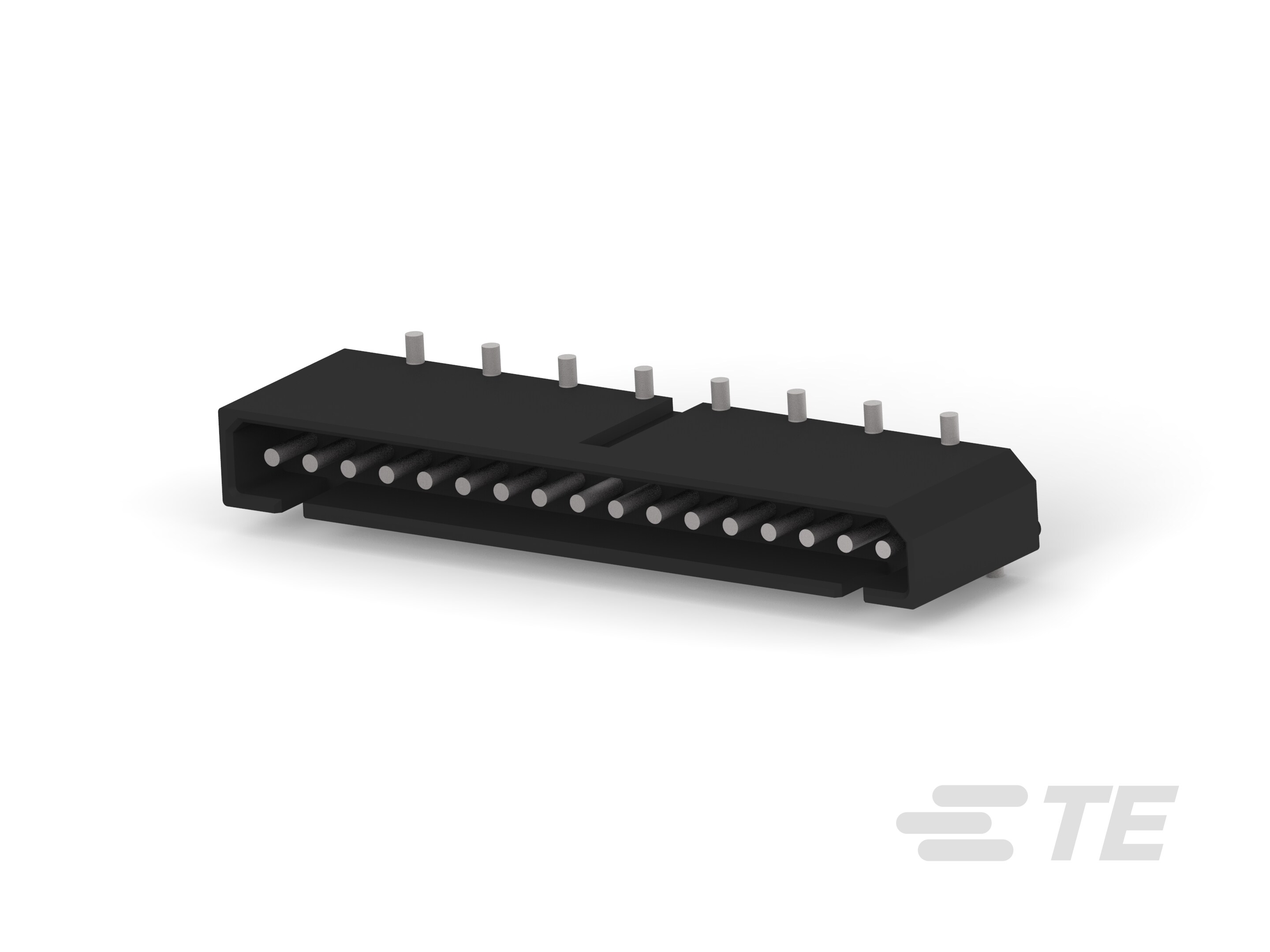

TE Connectivity AMP Connectors 7-174820-7	7 mm 7.8 mm	Black	Circular	1	0.5 A	Brass	50 V	Male Pin	Solder	-30 ░C	105 ░C	0.049 in	1.25 mm	All	Header			Tin	Surface Mount	Polyphenylene Sulfide (PPS)	Push-Pull		Shrouded - 4 Wall	Board Guide	5.95 mm	0.234 in
TE Connectivity AMP Connectors 3-174820-8	5 mm 5.8 mm	Black	Circular	1	0.5 A	Brass	50 V	Male Pin	Solder	-30 ░C	105 ░C	0.049 in	1.25 mm	All	Header	0.156 in	3.96 mm	Tin	Surface Mount	Polyphenylene Sulfide (PPS)	Push-Pull	8	Shrouded - 4 Wall	Board Guide
