1.5/2.8 Connector System Series

Catalog

2.8MM RECP,SEAL,20AWG,REV REEL

Part	Type	Wire Gauge	Contact Termination	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Number of Rows [custom]	Row Spacing	Row Spacing	Pitch	Pitch	Number of Positions	Fastening Type	Insulation Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge [custom]	Wire Gauge [custom]
TE Connectivity AMP Connectors 1326032-8	Power	20 AWG	Crimp	Socket	31.5 µin	0.8 µm	Tin
TE Connectivity AMP Connectors 2379921-4			Crimp					Female Socket	3	0.217 in	5.51 mm	0.197 in	5 mm	21	Lever Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	120 °C	-40 C	Receptacle	Blue
TE Connectivity AMP Connectors 1326029-3	Power		Crimp	Blade	31.5 µin	0.8 µm	Tin															14 AWG	16 AWG

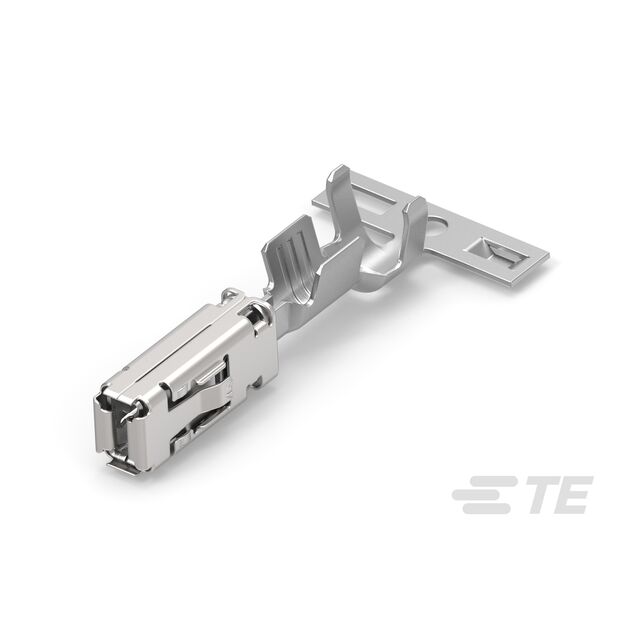

TE Connectivity AMP Connectors 967543-1			Crimp	Socket			Tin
TE Connectivity AMP Connectors 2379921-1			Crimp					Female Socket	3	0.217 in	5.51 mm	0.197 in	5 mm	21	Lever Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	120 °C	-40 C	Receptacle	Black
TE Connectivity AMP Connectors 967543-3			Crimp	Socket			Silver
TE Connectivity AMP Connectors 1326029-1	Power	22 AWG	Crimp	Blade	31.5 µin	0.8 µm	Tin
TE Connectivity AMP Connectors 2379922-4			Crimp					Male Pin	3	0.217 in	5.51 mm	0.197 in	5 mm	21		Glass Filled Nylon Polyamide (PA)	Panel Mount	120 °C	-40 C	Plug	Blue
TE Connectivity AMP Connectors 1703034-1			Crimp	Socket			Tin																	17	20 AWG
TE Connectivity AMP Connectors 967542-1			Crimp	Socket			Tin																	17	20 AWG
