MI-J20 Series

Catalog

MI-J20-IY-B1 28V/5V 50W MIL MI

Part	Features	Number of Outputs	Current - Output (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Applications	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output 1	Package / Case	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)
Vicor Corporation MI-J20-IY-B1
Vicor Corporation MI-J20-IA-F3	OCP OTP OVP Remote On/Off	1	2 A	Isolated Module	-40 C	100 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	10 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm
Vicor Corporation MI-J20-IA	OCP OTP OVP Remote On/Off	1	2 A	Isolated Module	-40 C	85 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	10 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm
Vicor Corporation MI-J20-MZ-B1

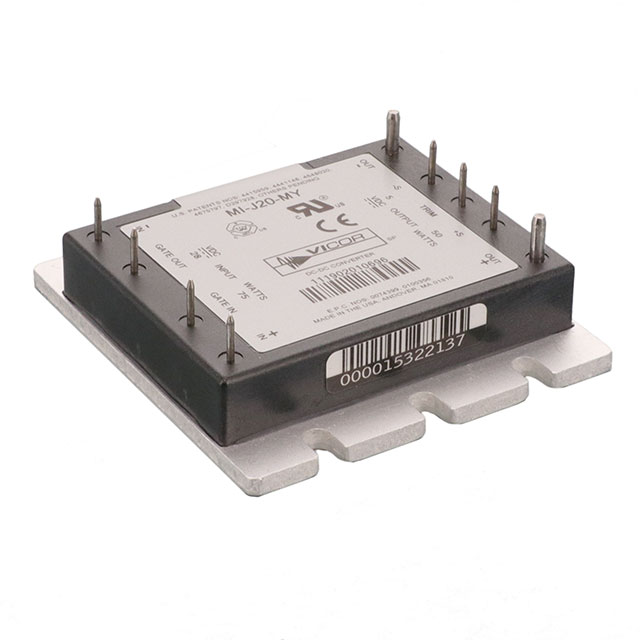

Vicor Corporation MI-J20-MY	OCP OTP OVP Remote On/Off	1	10 A	Isolated Module	-55 C	85 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	50 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm
Vicor Corporation MI-J20-IZ-S	OCP OTP OVP Remote On/Off	1		Isolated Module	-40 C	85 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	25 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	5 A
Vicor Corporation MI-J20-MA	OCP OTP OVP Remote On/Off	1	2 A	Isolated Module	-55 C	85 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	10 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm
Vicor Corporation MI-J20-MA-S	OCP OTP OVP Remote On/Off	1	2 A	Isolated Module	-55 C	85 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	10 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm
Vicor Corporation MI-J20-MZ	OCP OTP OVP Remote On/Off	1		Isolated Module	-55 C	85 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	25 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	5 A
Vicor Corporation MI-J20-MZ-F1	OCP OTP OVP Remote On/Off	1		Isolated Module	-55 C	85 °C	3000 V	18 V	ITE (Commercial)	Through Hole	50 V	5 V	9-DIP Module	90 %	25 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	5 A
