1454 Series

Catalog

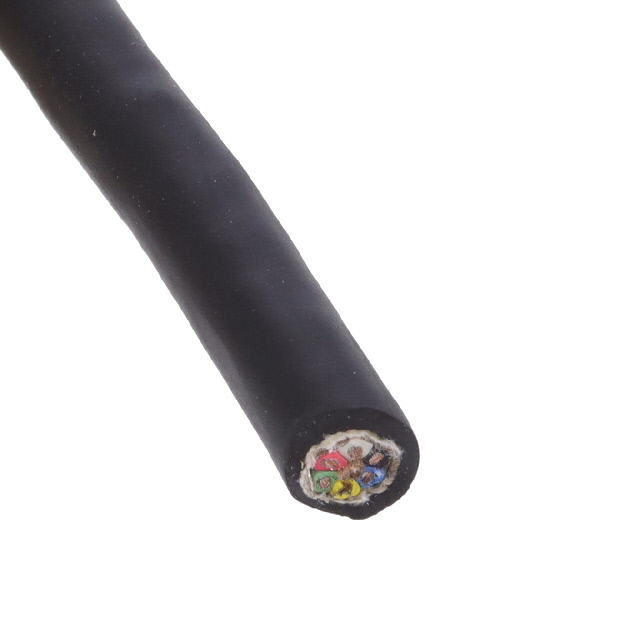

MULTICONDUCTOR CABLE, SHIELDED, 6 CONDUCTOR, 18 AWG, 0.82 MM², 500 FT, 152.4 M

Part	Shield Coverage	Shield Material	Cable Type	Wire Gauge	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Usage	Length	Length	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness [custom]	Number of Conductors	Voltage	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE 1454 BK002	85 %	Copper Tinned	Multi-Conductor	18 AWG	Braid	41	34	Copper Tinned	0.392 "	9.96 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Communication Control	152.4 m	500 ft	Black	1.143 mm	0.045 in	6	600 V	-20 ░C	60 °C
ALPHA WIRE 1454 BK001	85 %	Copper Tinned	Multi-Conductor	18 AWG	Braid	41	34	Copper Tinned	0.392 "	9.96 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Communication Control	304.8 m	1000 ft	Black	1.143 mm	0.045 in	6	600 V	-20 ░C	60 °C
