MB2461J Series

Catalog

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Actuator Marking	Color - Actuator/Cap	Termination Style	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Mechanical Life	Type	Circuit	Actuator Type	Switch Function	Electrical Life	Current Rating (Amps)	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches MB2461JW01-C-1A	No Marking	Red	Solder Lug	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Standard	DPDT	Button Square	On-Mom	25000 Steps	3 A
NKK Switches MB2461JW03	No Marking		PC Pin	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Standard	DPDT	Plunger for Cap	On-Mom	25000 Steps	3 A
NKK Switches MB2461JW01-B-1B	No Marking	White	Solder Lug	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Standard	DPDT	Button Square	On-Mom	25000 Steps	3 A
NKK Switches MB2461JW03-A-1A	No Marking	Black	PC Pin	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Standard	DPDT	Button Square	On-Mom	25000 Steps	3 A

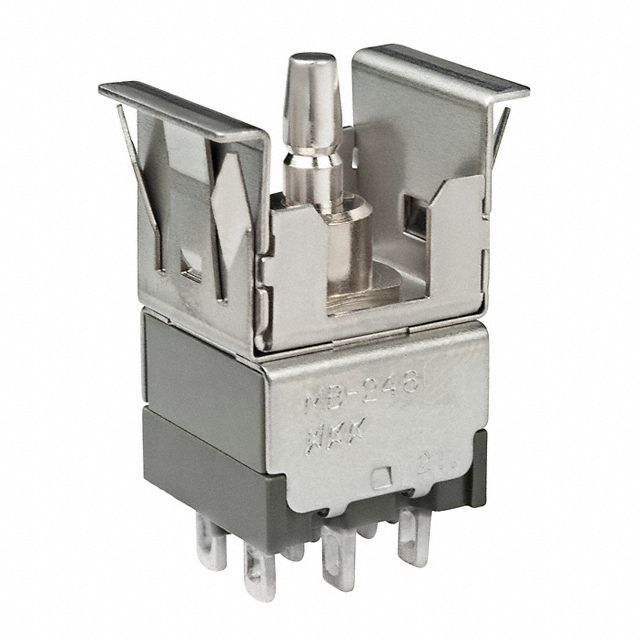

NKK Switches MB2461JW01	No Marking		Solder Lug	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Standard	DPDT	Plunger for Cap	On-Mom	25000 Steps	3 A

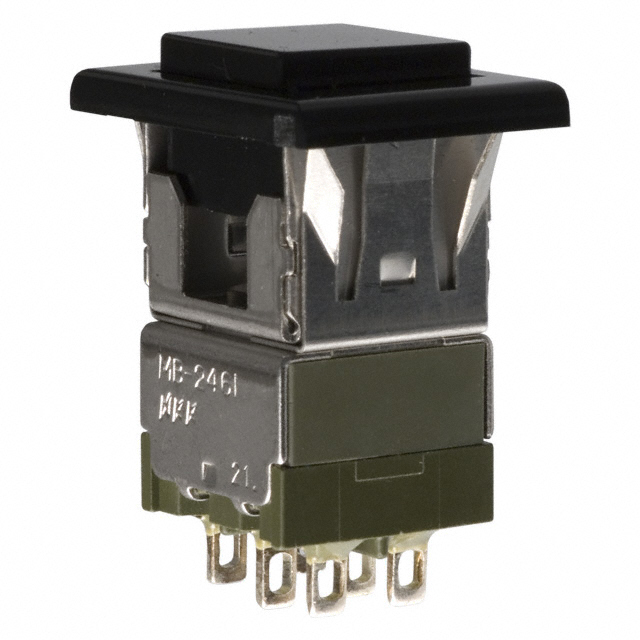

NKK Switches MB2461JW01-A-1A	No Marking	Black	Solder Lug	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Standard	DPDT	Button Square	On-Mom	25000 Steps	3 A

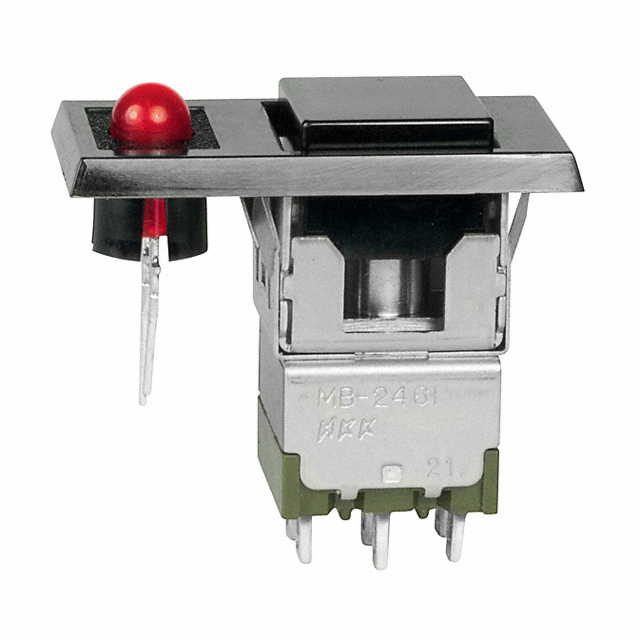

NKK Switches MB2461JW01-A-2A-C	No Marking	Black	Solder Lug	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Illuminated Standard	DPDT	Button Square	On-Mom	25000 Steps	3 A	LED Red	2.8 VDC
NKK Switches MB2461JW03-A-1H	No Marking	Black	PC Pin	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	13.1 mm	15 mm	125 V	200000 Cycles	Standard	DPDT	Button Square	On-Mom	25000 Steps	3 A
