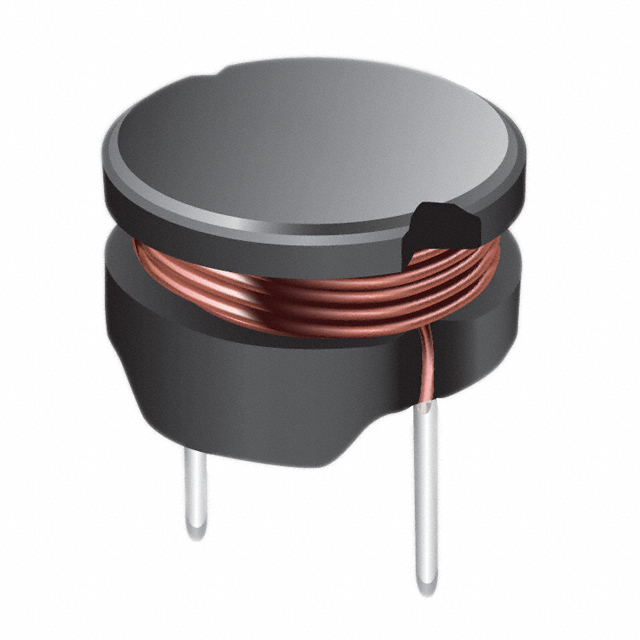

RL855 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 2.2MH 180MA 11.1OHM TH
| Part | Type | Inductance | Frequency - Self Resonant | Tolerance | Q @ Freq | Shielding | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Package / Case | Inductance Frequency - Test | Material - Core | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Drum Core Wirewound | 2.2 mH | 950 kHz | 10 % | 80 250 kHz | Unshielded | 0.18 A | 0.217 " | 5.5 mm | Through Hole | Radial Vertical Cylinder (Open) | 1 kHz | Ferrite | -30 ░C | 100 °C | 11.1 Ohm | 0.307 in | 7.8 mm |
 Bourns Inc. | Drum Core Wirewound | 820 µH | 1.7 MHz | 10 % | 34 790 kHz | Unshielded | 0.31 A | 0.217 " | 5.5 mm | Through Hole | Radial Vertical Cylinder (Open) | 1 kHz | Ferrite | -30 ░C | 100 °C | 3.8 Ohm | 0.307 in | 7.8 mm |
Bourns Inc. | Drum Core Wirewound | 8.2 mH | 550 kHz | 10 % | 80 250 kHz | Unshielded | 0.088 A | 0.217 " | 5.5 mm | Through Hole | Radial Vertical Cylinder (Open) | 1 kHz | Ferrite | -30 ░C | 100 °C | 46.5 Ohm | 0.307 in | 7.8 mm |
