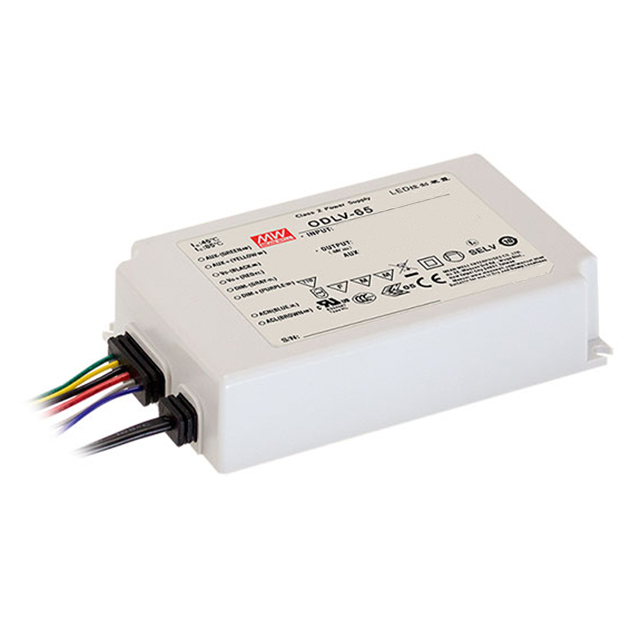

ODLV-65 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRIVER CV AC/DC 24V 2.4A
| Part | Mounting Type | Voltage - Output | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Features | Number of Outputs | Ratings | Type | Dimming | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Topology | Voltage - Isolation | Current - Output (Max) [Max] | Termination Style | Efficiency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 24 V | 180 VAC | 85 °C | -20 ░C | CB CCC CE cURus ENEC | OCP SCP | 1 | IP67 | Constant Voltage | Analog PWM | 28.5 mm | 3.03 in | 1.12 " | 77 mm | 121 mm | 4.76 " | 295 VAC | AC DC Converter | 3750 VDC | 2.4 A | Wire Leads | 87 % | |
MEAN WELL USA Inc. | Chassis Mount | 12 V | 180 VAC | 85 °C | -20 ░C | CB CCC CE cURus ENEC | OCP SCP | 1 | IP67 | Constant Voltage | Analog PWM | 28.5 mm | 3.03 in | 1.12 " | 77 mm | 121 mm | 4.76 " | 295 VAC | AC DC Converter | 3750 VDC | 4.2 A | Wire Leads | 85 % | 50 W |
MEAN WELL USA Inc. | Chassis Mount | 36 V | 180 VAC | 85 °C | -20 ░C | CB CCC CE cURus ENEC | OCP SCP | 1 | IP67 | Constant Voltage | Analog PWM | 28.5 mm | 3.03 in | 1.12 " | 77 mm | 121 mm | 4.76 " | 295 VAC | AC DC Converter | 3750 VDC | 1.8 A | Wire Leads | 88 % | 65 W |
