796740 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

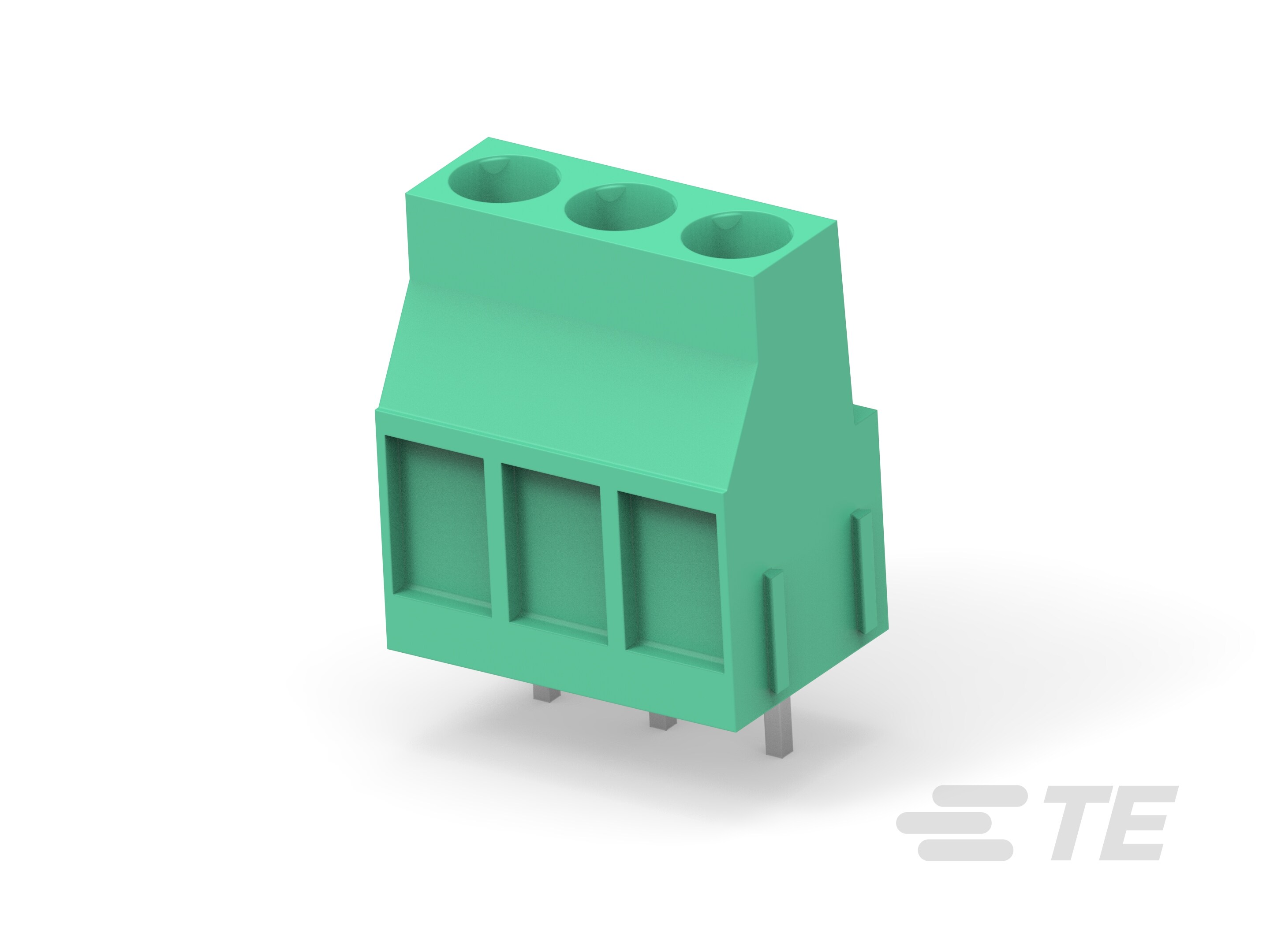

TERM BLK 3P SIDE ENT 6.35MM PCB
| Part | Torque - Screw | Torque - Screw | Screw Material - Plating | Clamp Material - Plating | Screw Thread | Voltage | Current | Pitch | Pitch | Color | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Features | Mating Orientation | Number of Levels | Wire Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7 Lb-In | 0.79 Nm | Brass - Nickel Plated | Brass - Nickel Plated | M3 | 300 VDC | 30 A | 6.35 mm | 0.25 in | Green | 24 AWG | 10 AWG | 3 | Interlocking (Side) | Horizontal with Board | 1 | Screw - Rising Cage Clamp | Through Hole |
