TPS3899-Q1 Series

Automotive nanopower supervisor with programmable sense and reset delay

Catalog

Automotive nanopower supervisor with programmable sense and reset delay

Part	Number of Voltages Monitored	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Threshold	Package / Case	Reset	Output	Reset Timeout	Type	Mounting Type	Qualification	Grade	Voltage - Threshold
Texas Instruments TPS3899DL30DSER	1	-40 °C	125 °C	3 V	6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Monitor	Surface Mount

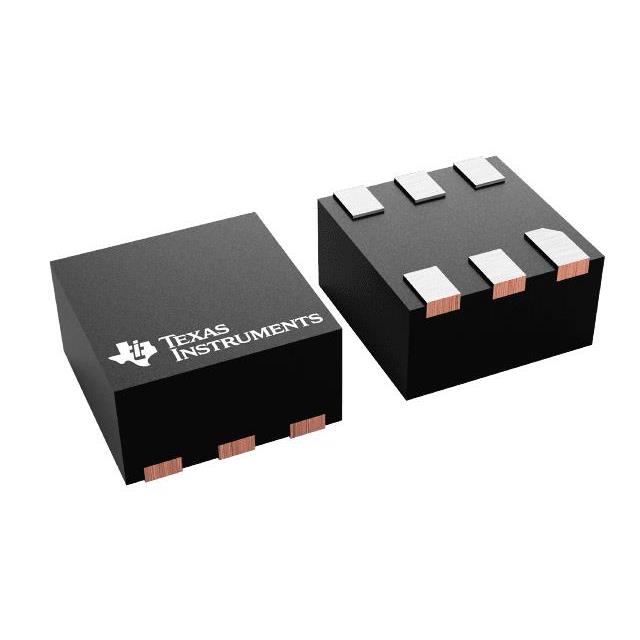

Texas Instruments TPS3899DL43DSER	1	-40 °C	125 °C	4.3 V	6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Simple Reset/Power-On Reset	Surface Mount
Texas Instruments TPS3899PL16DSERQ1	1	-40 °C	125 °C	1.6 V	6-WFDFN	Active Low	Push-Pull	40 µs	Regulator/Supervisor	Surface Mount

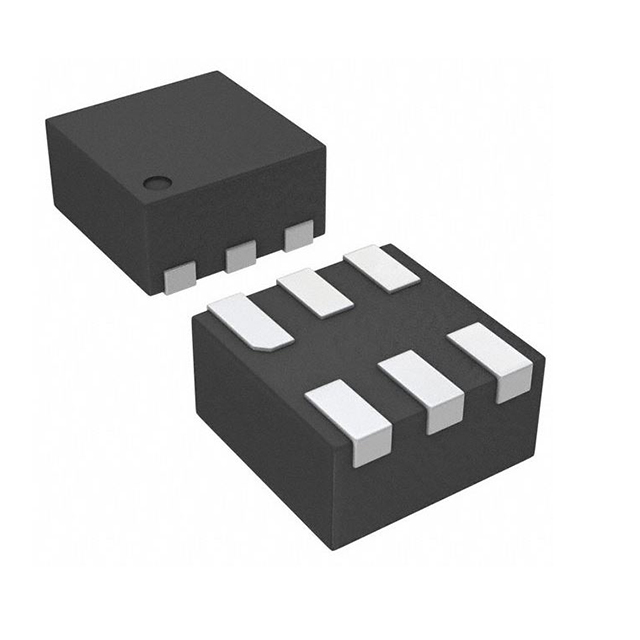

Texas Instruments TPS3899DL01DSERQ1	1	-40 °C	125 °C		6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Regulator/Supervisor	Surface Mount	AEC-Q100	Automotive	Adjustable/Selectable
Texas Instruments TPS3899DL08DSER	1	-40 °C	125 °C	800 mV	6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Simple Reset/Power-On Reset	Surface Mount
Texas Instruments TPS3899DL28DSER	1	-40 °C	125 °C	2.8 V	6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Monitor	Surface Mount
Texas Instruments TPS3899DL35DSER	1	-40 °C	125 °C	3.5 V	6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Simple Reset/Power-On Reset	Surface Mount
Texas Instruments TPS3899DL09DSER	1	-40 °C	125 °C	900 mV	6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Simple Reset/Power-On Reset	Surface Mount
Texas Instruments TPS3899PL31DSER	1	-40 °C	125 °C	3.1 V	6-WFDFN	Active Low	Push-Pull	40 µs	Monitor	Surface Mount
Texas Instruments TPS3899DL01DSER	1	-40 °C	125 °C		6-WFDFN	Active Low	Open Drain or Open Collector	40 µs	Simple Reset/Power-On Reset	Surface Mount			Adjustable/Selectable

Catalog

Automotive nanopower supervisor with programmable sense and reset delay

Key Features

• Qualified for automotive applications:AEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperatureDevice HBM ESD classification level 2Device CDM ESD classification level C7BDesigned for high performance:Nano quiescent current: 125nA (typical)High threshold accuracy: ±0.5% (typical)Built-in precision hysteresis (VHYS): 5% (typical)Designed for a wide range of applications:Operating voltage range:0.85V to 6V (DL and PL outputs)1V to 6V (PH output)Adjustable threshold voltage: 0.505V (typical)Precision voltage and push-button monitorProgrammable sense and reset delayFixed (VIT-) voltage: 0.8V to 5.4V in 0.1V stepsMultiple output topologies / Package type:TPS3899DL-Q1: open-drain, active-low (RESET)TPS3899PL-Q1: push-pull, active-low (RESET)TPS3899PH-Q1: push-pull, active-high (RESET)Package: 1.5mm × 1.5mm WSON (DSE)Qualified for automotive applications:AEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperatureDevice HBM ESD classification level 2Device CDM ESD classification level C7BDesigned for high performance:Nano quiescent current: 125nA (typical)High threshold accuracy: ±0.5% (typical)Built-in precision hysteresis (VHYS): 5% (typical)Designed for a wide range of applications:Operating voltage range:0.85V to 6V (DL and PL outputs)1V to 6V (PH output)Adjustable threshold voltage: 0.505V (typical)Precision voltage and push-button monitorProgrammable sense and reset delayFixed (VIT-) voltage: 0.8V to 5.4V in 0.1V stepsMultiple output topologies / Package type:TPS3899DL-Q1: open-drain, active-low (RESET)TPS3899PL-Q1: push-pull, active-low (RESET)TPS3899PH-Q1: push-pull, active-high (RESET)Package: 1.5mm × 1.5mm WSON (DSE)

Description

The TPS3899 is a nano power, precision voltage supervisor with ±0.5% threshold accuracy and programmable sense and reset time delay in a 6 pin space saving 1.5mm x 1.5mm WSON package. The TPS3899 is a feature-rich voltage supervisor that offers the smallest total solution size in its class. Built-in hysteresis along with programmable delay prevent false reset signals when monitoring a voltage rail or push button signals. The separate VDD and SENSE pins allow for the redundancy sought by high-reliability systems. SENSE is decoupled from VDD and can monitor rail voltages other than VDD. Optional use of external resistors are supported by the high impedance input of the SENSE pin. Both CTS and CTR provide delay adjustability on the rising and falling edges of the RESET signals. CTS also functions as a debouncer by ignoring voltage glitches on the monitored voltage rails and operates as a "manual reset" that can be used to force a system reset. The precision performance, best in-class features in a compact form factor, makes the TPS3899 an ideal solution for wide ranging industrial and battery-powered applications such as Factory/Building Automation, Motor Drives, and consumer products. The device is fully specified over a temperature range of –40°C to +125°C (TA). The TPS3899 is a nano power, precision voltage supervisor with ±0.5% threshold accuracy and programmable sense and reset time delay in a 6 pin space saving 1.5mm x 1.5mm WSON package. The TPS3899 is a feature-rich voltage supervisor that offers the smallest total solution size in its class. Built-in hysteresis along with programmable delay prevent false reset signals when monitoring a voltage rail or push button signals. The separate VDD and SENSE pins allow for the redundancy sought by high-reliability systems. SENSE is decoupled from VDD and can monitor rail voltages other than VDD. Optional use of external resistors are supported by the high impedance input of the SENSE pin. Both CTS and CTR provide delay adjustability on the rising and falling edges of the RESET signals. CTS also functions as a debouncer by ignoring voltage glitches on the monitored voltage rails and operates as a "manual reset" that can be used to force a system reset. The precision performance, best in-class features in a compact form factor, makes the TPS3899 an ideal solution for wide ranging industrial and battery-powered applications such as Factory/Building Automation, Motor Drives, and consumer products. The device is fully specified over a temperature range of –40°C to +125°C (TA).
