1761685 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 34POS 2.54MM

Part	Insulation Height [custom]	Insulation Height [custom]	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating [x]	Style	Insulation Material	Contact Material	Mounting Type	Contact Shape	Termination	Contact Length - Post	Contact Length - Post	Shrouding	Contact Finish - Post	Contact Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Number of Positions	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions
TE Connectivity Raychem Cable Protection 1-1761685-1	0.35 in	8.89 mm	Latch Lock/Eject Hooks Short	2	0.1 in	2.54 mm	6.1 mm	0.24 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Through Hole	Square	Solder	0.102 in	2.6 mm	Shrouded - 4 Wall	Tin	Male Pin	250 VAC	30 Áin	0.76 Ám	Keying Slot	Blue	-65 ░C	105 ░C	UL94 V-0	Header	1 A	2.54 µm	100 µin	All	34	Gold	2.54 mm	0.1 in

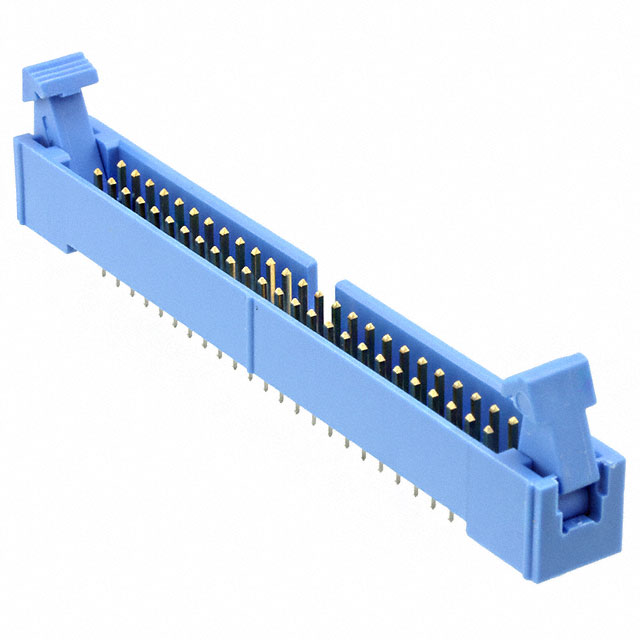

TE Connectivity Raychem Cable Protection 1-1761685-5	0.35 in	8.89 mm	Latch Lock/Eject Hooks Short	2	0.1 in	2.54 mm	6.1 mm	0.24 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Through Hole	Square	Solder	0.102 in	2.6 mm	Shrouded - 4 Wall	Tin	Male Pin	250 VAC	30 Áin	0.76 Ám	Keying Slot	Blue	-65 ░C	105 ░C	UL94 V-0	Header	1 A	2.54 µm	100 µin	All	50	Gold	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection 1-1761685-3	0.35 in	8.89 mm	Latch Lock/Eject Hooks Short	2	0.1 in	2.54 mm	6.1 mm	0.24 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Through Hole	Square	Solder	0.102 in	2.6 mm	Shrouded - 4 Wall	Tin	Male Pin	250 VAC	30 Áin	0.76 Ám	Keying Slot	Blue	-65 ░C	105 ░C	UL94 V-0	Header	1 A	2.54 µm	100 µin	All	40	Gold	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection 1761685-7	0.35 in	8.89 mm	Latch Lock/Eject Hooks Short	2	0.1 in	2.54 mm	6.1 mm	0.24 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Through Hole	Square	Solder	0.102 in	2.6 mm	Shrouded - 4 Wall	Tin	Male Pin	250 VAC	30 Áin	0.76 Ám	Keying Slot	Blue	-65 ░C	105 ░C	UL94 V-0	Header	1 A	2.54 µm	100 µin	All	20	Gold	2.54 mm	0.1 in

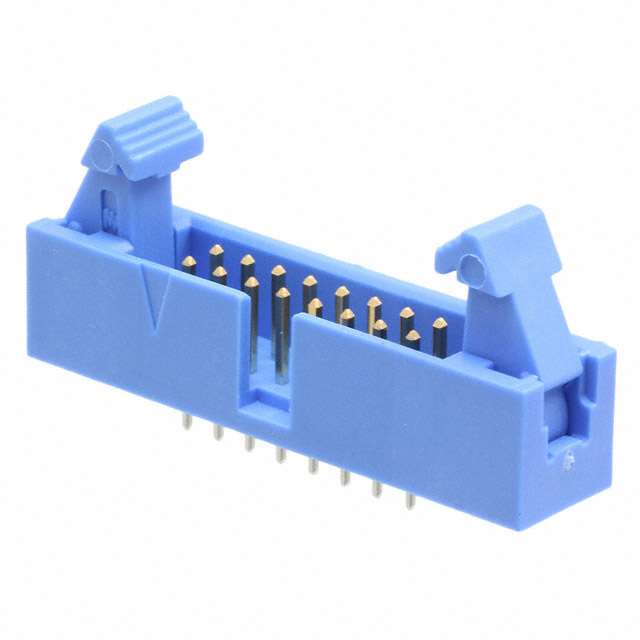

TE Connectivity Raychem Cable Protection 1761685-6	0.35 in	8.89 mm	Latch Lock/Eject Hooks Short	2	0.1 in	2.54 mm	6.1 mm	0.24 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Through Hole	Square	Solder	0.102 in	2.6 mm	Shrouded - 4 Wall	Tin	Male Pin	250 VAC	30 Áin	0.76 Ám	Keying Slot	Blue	-65 ░C	105 ░C	UL94 V-0	Header	1 A	2.54 µm	100 µin	All		Gold	2.54 mm	0.1 in	16

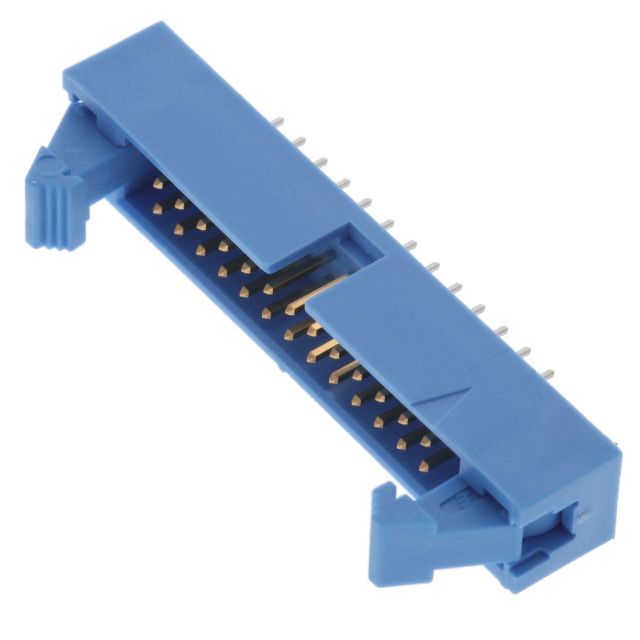

TE Connectivity Raychem Cable Protection 1761685-9	0.35 in	8.89 mm	Latch Lock/Eject Hooks Short	2	0.1 in	2.54 mm	6.1 mm	0.24 in	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Through Hole	Square	Solder	0.102 in	2.6 mm	Shrouded - 4 Wall	Tin	Male Pin	250 VAC	30 Áin	0.76 Ám	Keying Slot	Blue	-65 ░C	105 ░C	UL94 V-0	Header	1 A	2.54 µm	100 µin	All	26	Gold	2.54 mm	0.1 in
