z-sms Series
Manufacturer: KEMET
Beta
⌘K

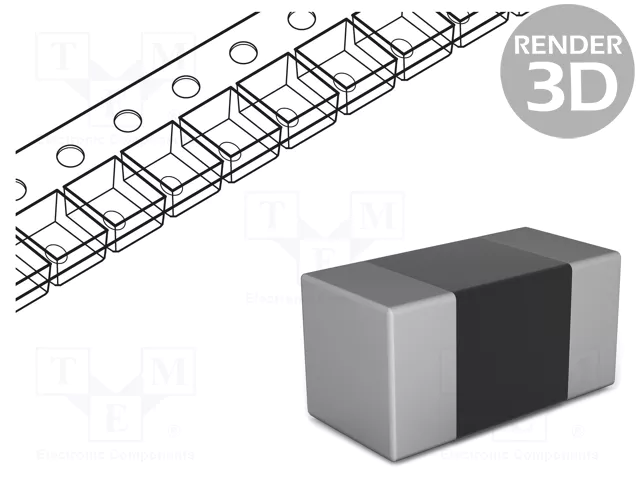

FERRITE: BEAD; SMD; 0603; R: 100MΩ; -55÷125°C; ±25%; Z: 60Ω; 800MA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Height (Max) [z] | Height (Max) [z] | DC Resistance (DCR) (Max) [Max] | Package / Case | Package / Case | Filter Type | Mounting Type | Current Rating (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Impedance @ Frequency | Number of Lines | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | -55 C | 125 °C | 0.037 in | 0.95 mm | 100 mOhm | 1608 Metric | 0603 | Signal Line | Surface Mount | 800 mA | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 60 Ohms | 1 | |
KEMET | -55 C | 125 °C | 0.041 in | 1.05 mm | 150 mOhm | 0805 | Signal Line | Surface Mount | 800 mA | 0.049 " | 2 mm | 0.079 in | 120 Ohms | 1 | 1.25 mm |
