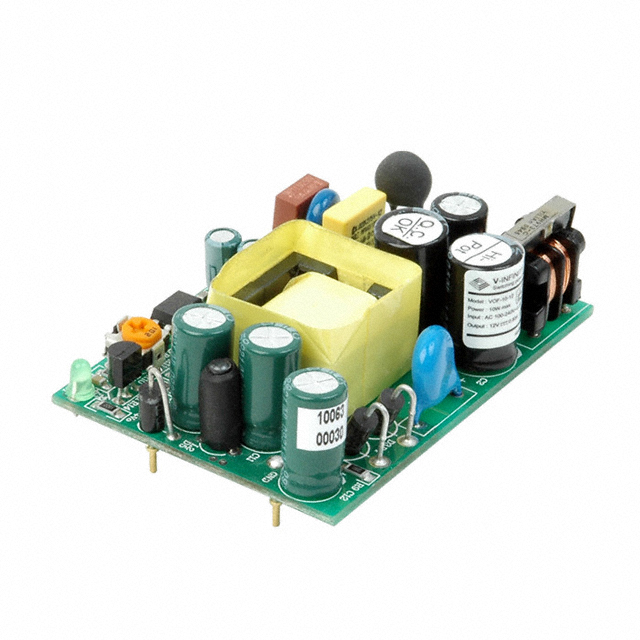

VOF-10 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 3.3V 10W

Part	Load Regulation	Mounting Type	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Power (Watts)	Standard Number	Package / Case	Type	Number of Outputs	Features	Line Regulation	Approval Agency	Efficiency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Load Regulation
CUI Inc. VOF-10-3.3	1.2 %	Through Hole	2.4 A	ITE (Commercial)	60 °C	10 W	55024 60950-1 61000-3-2 61000-3-3	4-DIP Module	Open Frame	1	Universal Input	0.6 %	CB Scheme EN IEC SIQ TUV UL	70 %	3.3 V	23.1 mm	0.91 in	1.77 in	45 mm	65 mm	2.56 in
CUI Inc. VOF-10-5		Through Hole	2 A	ITE (Commercial)	60 °C	10 W	55024 60950-1 61000-3-2 61000-3-3	4-DIP Module	Open Frame	1	Universal Input	0.5 %	CB Scheme EN IEC SIQ TUV UL	75 %	5 V	23.1 mm	0.91 in	1.77 in	45 mm	65 mm	2.56 in	±1%
CUI Inc. VOF-10-24		Through Hole	420 mA	ITE (Commercial)	60 °C	10 W	55024 60950-1 61000-3-2 61000-3-3	4-DIP Module	Open Frame	1	Universal Input	0.5 %	CB Scheme EN IEC SIQ TUV UL	78 %	24 V	23.1 mm	0.91 in	1.77 in	45 mm	65 mm	2.56 in	±1%
CUI Inc. VOF-10-12		Through Hole	830 mA	ITE (Commercial)	60 °C	10 W	55024 60950-1 61000-3-2 61000-3-3	4-DIP Module	Open Frame	1	Universal Input	0.5 %	CB Scheme EN IEC SIQ TUV UL	75 %	12 V	23.1 mm	0.91 in	1.77 in	45 mm	65 mm	2.56 in	±1%
