CGH40 Series

Catalog

RF MOSFET HEMT 28V 6QFN

Part	Power - Output	Frequency [Max]	Gain	Supplier Device Package	Package / Case	Current - Test	Voltage - Rated	Voltage - Test	Technology	Current Rating (Amps)

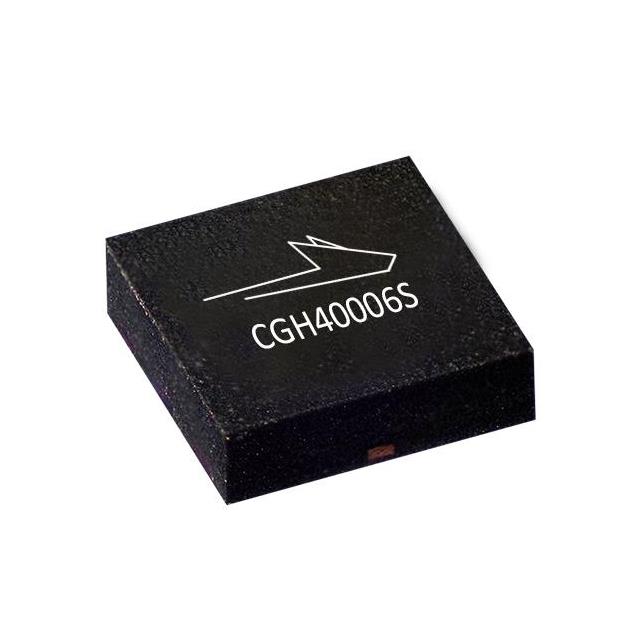

MACOM Technology Solutions CGH40006S	8 W	6 GHz	12 dBi	6-QFN-EP (3x3)	6-VDFN Exposed Pad	100 mA	84 V	28 V	HEMT

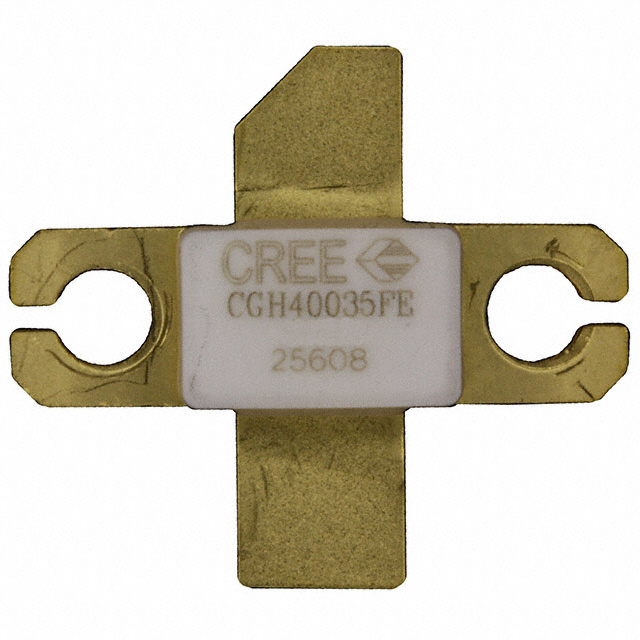

MACOM Technology Solutions CGH40035F	45 W	4 GHz	14 dBi	440193	440193	500 mA	84 V	28 V	HEMT	10.5 A

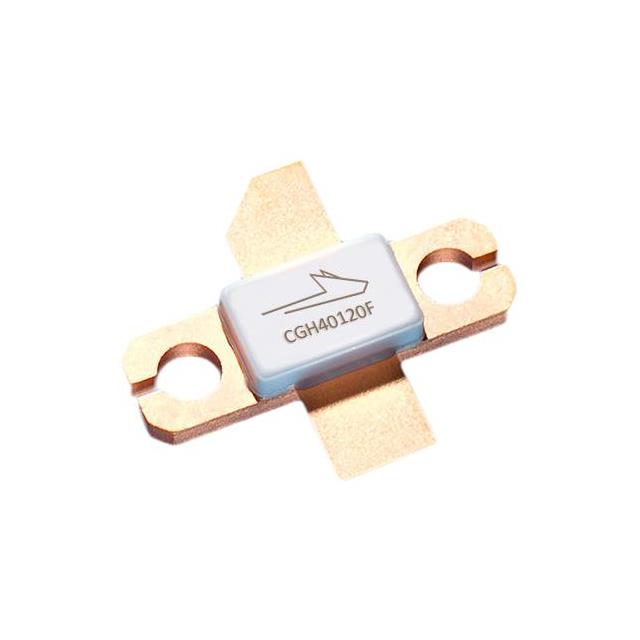

MACOM Technology Solutions CGH40120F	120 W	4 GHz	19 dB	440193	440193	1 A	84 V	28 V	HEMT	28 A

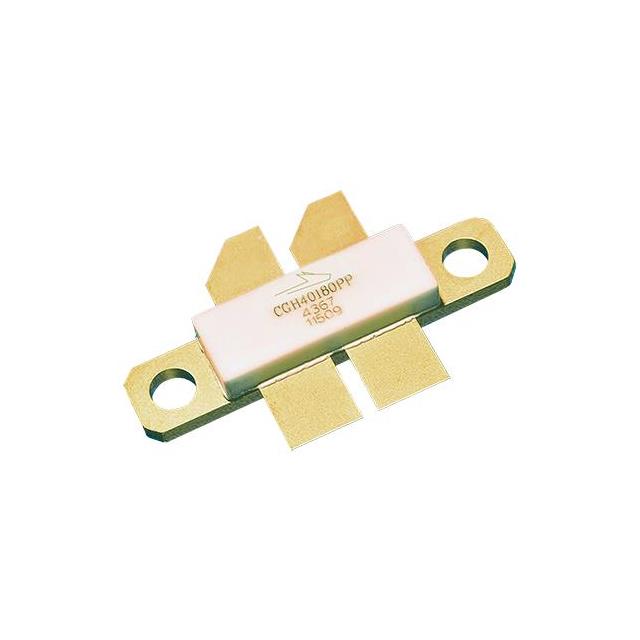

MACOM Technology Solutions CGH40180PP	220 W	2.5 GHz	19 dB	440199	440199	2 A	84 V	28 V	HEMT	56 A

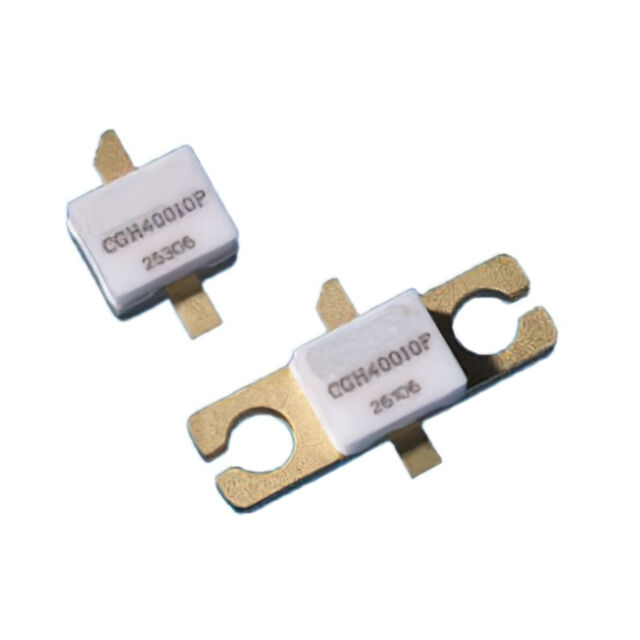

MACOM Technology Solutions CGH40010F	12.5 W	6 GHz	14.5 dBi	440166	440166	200 mA	84 V	28 V	HEMT	3.5 A

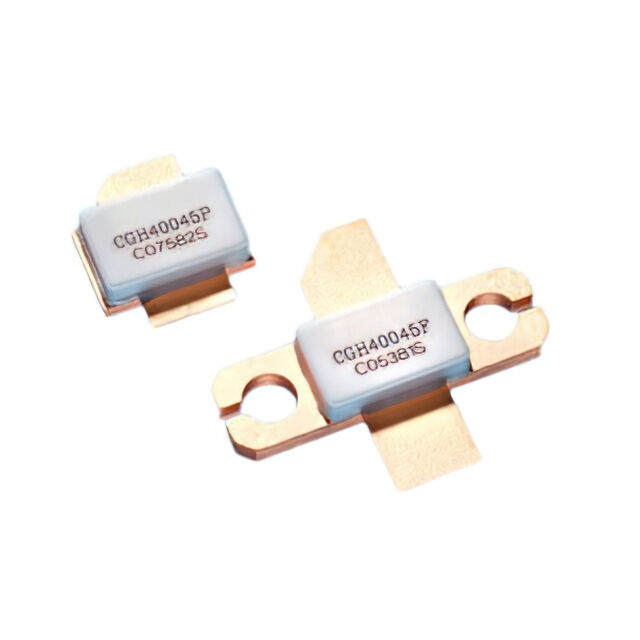

MACOM Technology Solutions CGH40045F	55 W	4 GHz	14 dBi	440193	440193	400 mA	84 V	28 V	HEMT	14 A

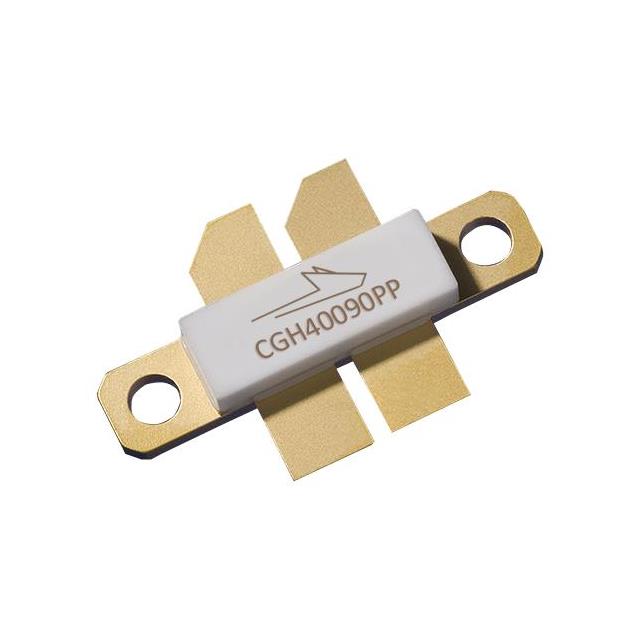

MACOM Technology Solutions CGH40090PP	100 W	4 GHz	12.5 dBi	440199	440199	1 A	84 V	28 V	HEMT	28 A

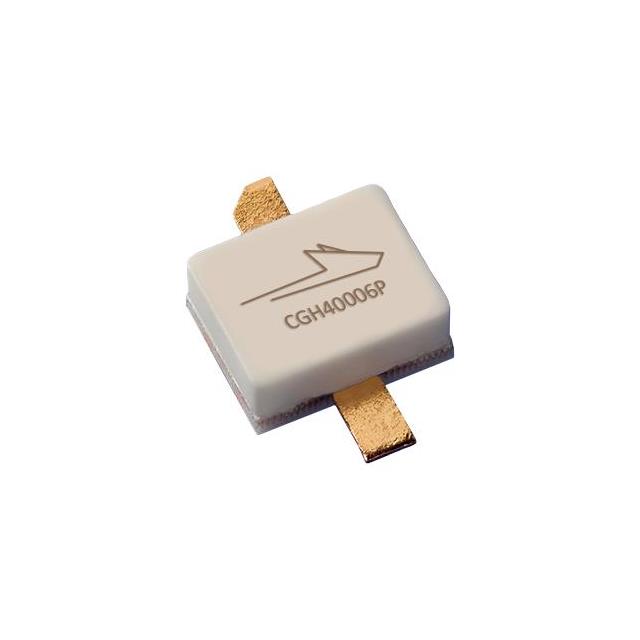

MACOM Technology Solutions CGH40006P	8 W	6 GHz	13 dBi	440109	440109	100 mA	84 V	28 V	HEMT	3.5 A

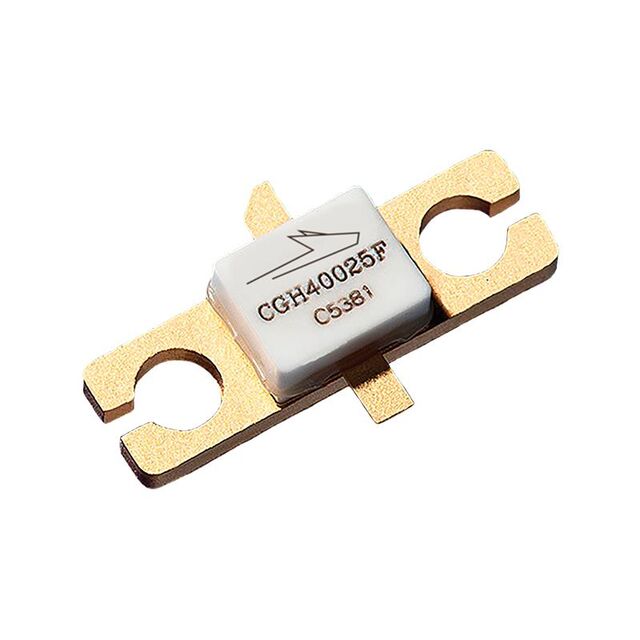

MACOM Technology Solutions CGH40025F	30 W	6 GHz	13 dBi	440166	440166	250 mA	84 V	28 V	HEMT	7 A
