LPPB041 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

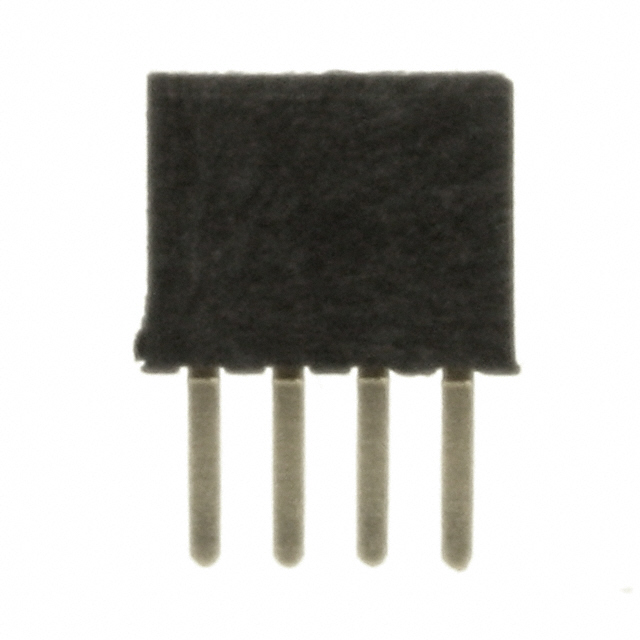

CONN HDR 4POS 0.05 GOLD PCB
| Part | Contact Shape | Insulation Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Termination | Contact Type | Contact Finish - Post | Number of Rows | Fastening Type | Mounting Type | Number of Positions Loaded | Contact Finish - Mating | Connector Type | Material Flammability Rating | Number of Positions | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Liquid Crystal Polymer (LCP) | Phosphor Bronze | -40 C | 105 ░C 125 °C | Flash | Solder | Female Socket | Gold | 1 | Push-Pull | Through Hole | All | Gold | Header | UL94 V-0 | 4 | Flash | 0.177 in | 4.5 mm | 0.118 in | 3 mm | 1.27 mm | 0.05 in |
