745-138 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 138POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row [custom]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Rows [custom]	Card Type	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Type	Contact Material	Read Out	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish
EDAC Inc. 745-138-520-201	2	Polyester Thermoplastic	69	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	Non Specified - Dual Edge	138	30 Áin	0.76 Ám	Press-Fit	Cantilever	Copper Alloy	Dual	Black	-40 C	105 ░C	Through Hole	Gold

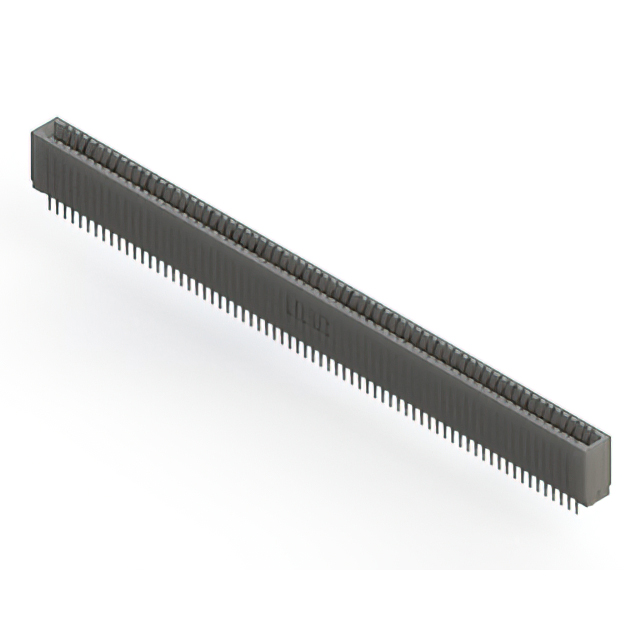

EDAC Inc. 745-138-525-201	2	Polyester Thermoplastic	69	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	Non Specified - Dual Edge	138	30 Áin	0.76 Ám	Press-Fit	Cantilever	Copper Alloy	Dual	Black	-40 C	105 ░C	Through Hole	Gold

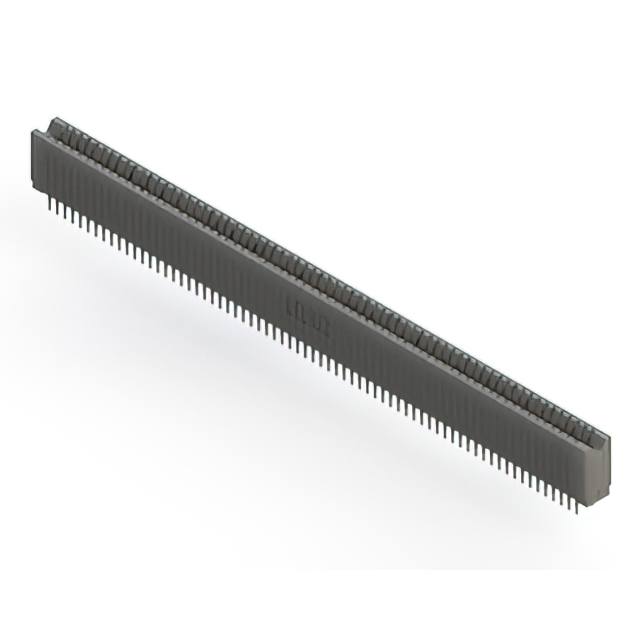

EDAC Inc. 745-138-525-206	2	Polyester Thermoplastic	69	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	Non Specified - Dual Edge	138	30 Áin	0.76 Ám	Press-Fit	Cantilever	Copper Alloy	Dual	Black	-40 C	105 ░C	Through Hole	Gold
EDAC Inc. 745-138-560-206	2	Polyester Thermoplastic	69	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	Non Specified - Dual Edge	138	30 Áin	0.76 Ám	Press-Fit	Cantilever Make Before Break	Copper Alloy	Dual	Black	-40 C	105 ░C	Through Hole	Gold
EDAC Inc. 745-138-520-206	2	Polyester Thermoplastic	69	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	Non Specified - Dual Edge	138	30 Áin	0.76 Ám	Press-Fit	Cantilever	Copper Alloy	Dual	Black	-40 C	105 ░C	Through Hole	Gold
EDAC Inc. 745-138-541-206	2	Polyester Thermoplastic	69	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	Non Specified - Dual Edge	138	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Cantilever	Copper Alloy	Dual	Black	-40 C	105 ░C	Through Hole	Gold
EDAC Inc. 745-138-541-201	2	Polyester Thermoplastic	69	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	2	Non Specified - Dual Edge	138	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Cantilever	Copper Alloy	Dual	Black	-40 C	105 ░C	Through Hole	Gold
