RTQ9728 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

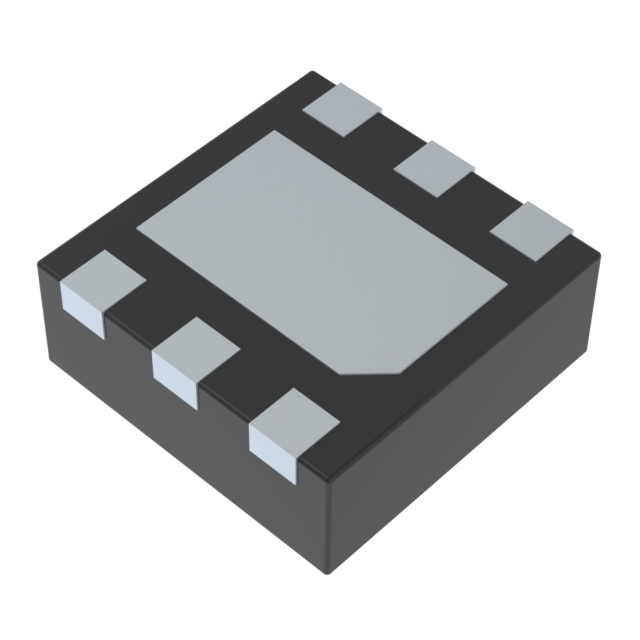

IC CURRENT LIMIT SWITCH WDFN-6S
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Fault Protection | Rds On (Typ) | Switch Type | Ratio - Input:Output | Supplier Device Package | Features | Output Configuration | Input Type | Interface | Voltage - Supply (Vcc/Vdd) | Number of Outputs | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | -40 C | 125 °C | 2.5 A | Current Limiting (Fixed) Over Temperature Reverse Battery Short Circuit UVLO | 74 mOhm | USB Switch | 1:1 | 6-WDFN (2x2) | Load Discharge Status Flag | High Side | Non-Inverting | On/Off | Not Required | 1 | Surface Mount | 2.5 V | 6 V | P-Channel |
