RBB34 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 68POS 0.050

Part	Material - Insulation	Number of Rows [custom]	Pitch	Pitch	Contact Material	Contact Type	Number of Positions/Bay/Row	Number of Positions	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Color	Read Out	Card Thickness	Card Thickness	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Features
Sullins Connector Solutions RBB34DHFD	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Hairpin Bellows	34	68 positions	Female	-65 ░C	125 °C	Gold	Surface Mount	Black	Dual	1.57 mm	0.062 in	Solder	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	0.25 Ám	10 Áin	Non Specified - Dual Edge
Sullins Connector Solutions RBB34DYHD	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Cantilever	34	68 positions	Female	-65 ░C	125 °C	Gold	Through Hole	Black	Dual	1.57 mm	0.062 in	Solder Staggered	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	0.25 Ám	10 Áin	Non Specified - Dual Edge
Sullins Connector Solutions RBB34DHLN	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Hairpin Bellows	34	68 positions	Female	-65 ░C	125 °C	Gold	Through Hole	Black	Dual	1.57 mm	0.062 in	Solder				0.25 Ám	10 Áin	Non Specified - Dual Edge
Sullins Connector Solutions RBB34DHLR	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Hairpin Bellows	34	68 positions	Female	-65 ░C	125 °C	Gold	Through Hole	Black	Dual	1.57 mm	0.062 in	Solder				0.25 Ám	10 Áin	Non Specified - Dual Edge	Board Lock
Sullins Connector Solutions RBB34DHNT	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Hairpin Bellows	34	68 positions	Female	-65 ░C	125 °C	Gold	Through Hole	Black	Dual	1.57 mm	0.062 in	Solder	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	Non Specified - Dual Edge
Sullins Connector Solutions RBB34DYFD	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Cantilever	34	68 positions	Female	-65 ░C	125 °C	Gold	Surface Mount	Black	Dual	1.57 mm	0.062 in	Solder	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	0.25 Ám	10 Áin	Non Specified - Dual Edge
Sullins Connector Solutions RBB34DHLT	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Hairpin Bellows	34	68 positions	Female	-65 ░C	125 °C	Gold	Through Hole	Black	Dual	1.57 mm	0.062 in	Solder	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	Non Specified - Dual Edge

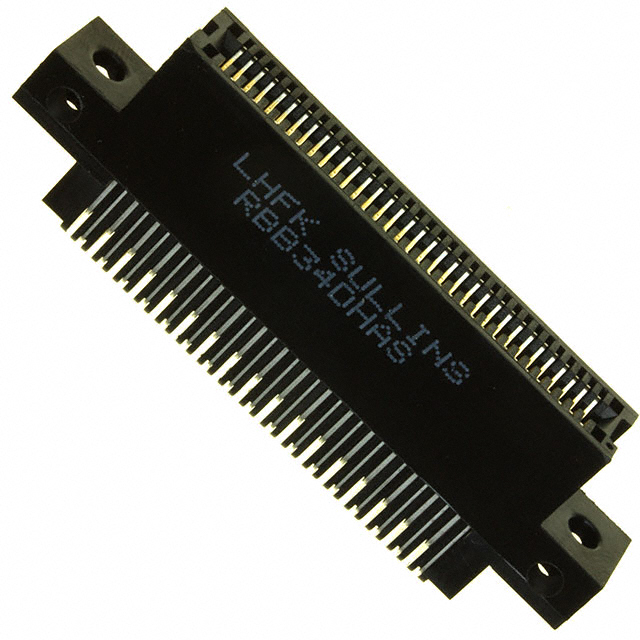

Sullins Connector Solutions RBB34DHAS	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Hairpin Bellows	34	68 positions	Female	-65 ░C	125 °C	Gold	Right Angle Through Hole	Black	Dual	1.57 mm	0.062 in	Solder Staggered	Side Mount Opening Unthreaded	3.18 mm	0.125 "	0.25 Ám	10 Áin	Non Specified - Dual Edge
Sullins Connector Solutions RBB34DYFR	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Cantilever	34	68 positions	Female	-65 ░C	125 °C	Gold	Surface Mount	Black	Dual	1.57 mm	0.062 in	Solder				0.25 Ám	10 Áin	Non Specified - Dual Edge	Board Lock

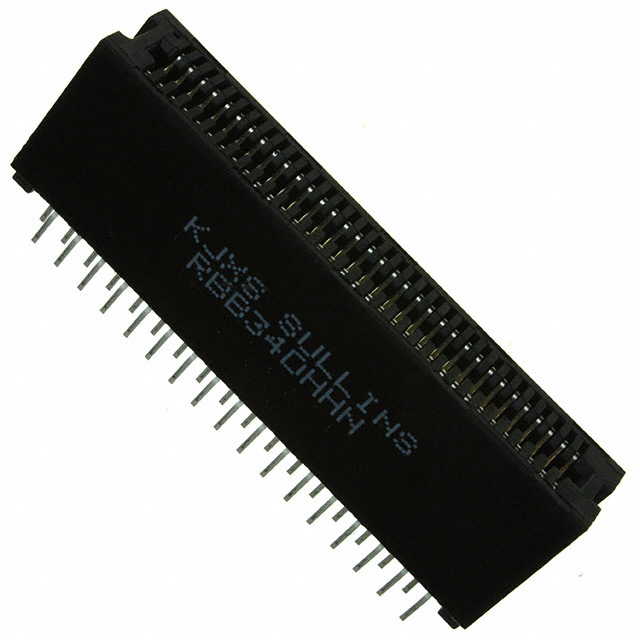

Sullins Connector Solutions RBB34DHHN	Polyphenylene Sulfide (PPS)	2	0.05 in	1.27 mm	Phosphor Bronze	Hairpin Bellows	34	68 positions	Female	-65 ░C	125 °C	Gold	Through Hole	Black	Dual	1.57 mm	0.062 in	Solder Staggered				0.25 Ám	10 Áin	Non Specified - Dual Edge
