H201 Series

Catalog

LED ASSEMBLY, RIGHT ANGLE, 3 MM LED, BI-LEVEL, 1 STATION, AMBER, GREEN, DIFFUSED LENS / TRAY

Part	Millicandela Rating	Configuration	Lens Type	Lens Style	Color	Viewing Angle	Voltage Rating	Current	Wavelength - Peak	Lens Size	Lens Size	Current	Voltage Rating	Mounting Type
Bivar Inc. H201CAGD	25 mcd 25 mcd	2 High	Diffused	Round with Domed Top	Amber (x 1) Green (x 1)	40 °	2 V 2.1 V	20mA Amber 20mA Green	568 nm 605 nm	3 mm	T-1
Bivar Inc. H201CRAD	2 mcd 25 mcd	2 High	Diffused	Round with Domed Top	Amber (x 1) Red (x 1)	40 °	2 V 2.1 V	20mA Amber 20mA Red	605 nm 700 nm	3 mm	T-1
Bivar Inc. H201CGD	25 mcd	2 High	Diffused	Round with Domed Top	Green (x 2)	40 °	2.1 V		568 nm	3 mm	T-1	20 mA

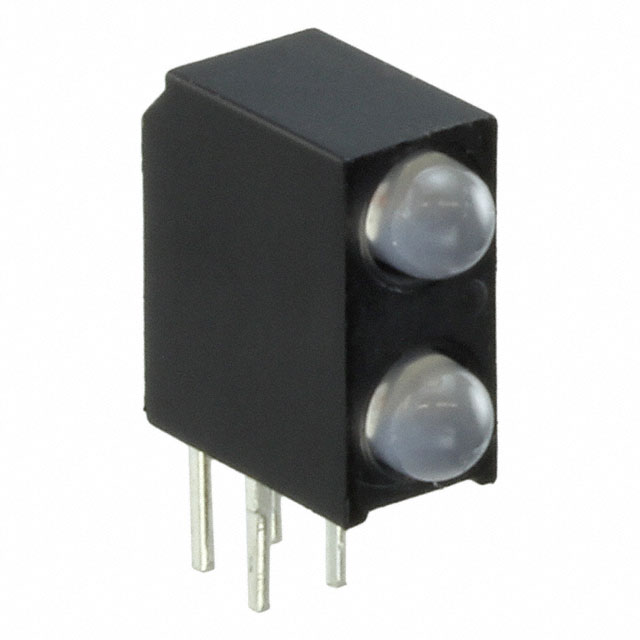

Bivar Inc. H201CBC	30 mcd 30 mcd	2 High	Diffused White	Round with Domed Top	Green (x 1) Red (x 1)	45 °	2 V 2.2 V	30mA Green 30mA Red	568 nm 635 nm	3 mm	T-1

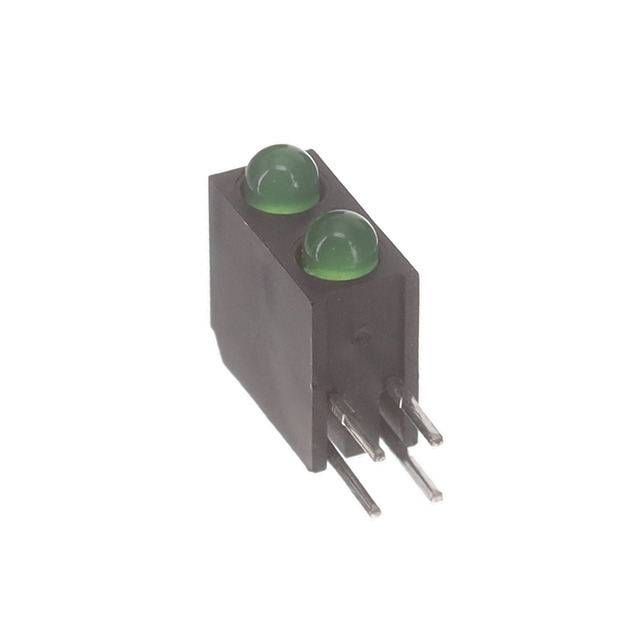

Bivar Inc. H201CGDL	2 mcd	2 High	Diffused	Round with Domed Top	Green (x 2)	40 °	2.1 V		568 nm	3 mm	T-1	2 mA
Bivar Inc. H201CBWD	10 mcd	2 High	Diffused	Round with Domed Top	Blue	40 °	4 V		430 nm	3 mm	T-1	20 mA
Bivar Inc. H201CRD	2 mcd	2 High	Diffused	Round with Domed Top	Red	40 °	2.1 V		700 nm	3 mm	T-1	20 mA
Bivar Inc. H201CGHD	25 mcd 30 mcd	2 High	Diffused	Round with Domed Top	Green (x 1) Red (x 1)	40 °	2 V 2.1 V		568 nm 625 nm	3 mm	T-1	20 mA 20 mA
Bivar Inc. H201CGYDL		2 High		Round with Domed Top	Green (x 1) Yellow (x 1)					3 mm	T-1	2 mA	1.9V Green 1.9V Yellow	Right Angle Through Hole
