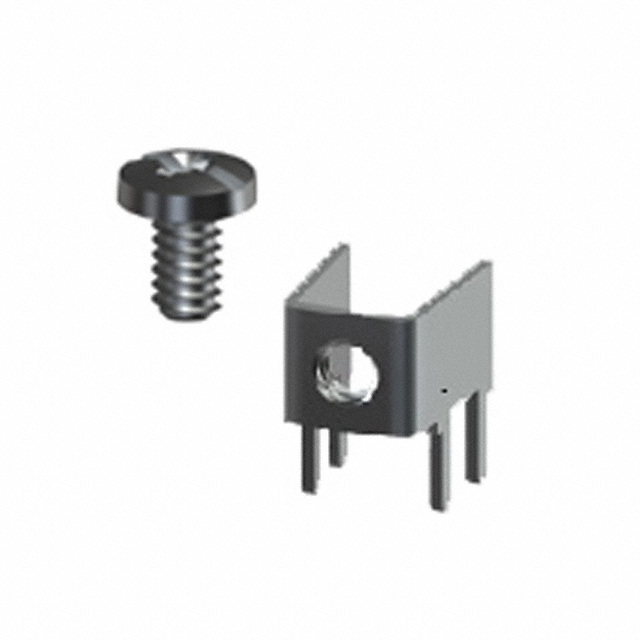

8190 Series
Manufacturer: Keystone Electronics
Beta
⌘K

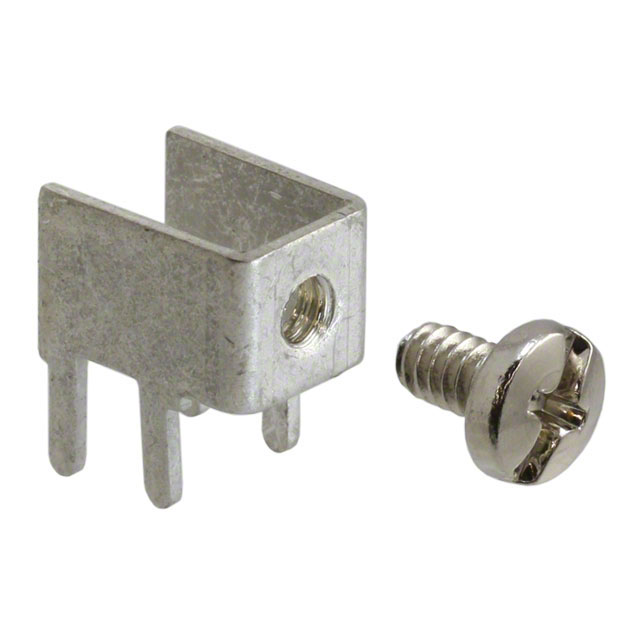

TERM SCREW 6-32 4 PIN PCB RA
| Part | Screw Material | Contact Material | Screw Finish | Contact Finish | Screw Size | Mounting Type | Number of Pins | Current Rating (Amps) | Termination | Terminal Type | Head Diameter [diameter] | Head Diameter [diameter] | Plating | Screw Head Type | Drive Type | Thread Size | Type | Length - Overall [x] | Length - Overall [x] | Head Height | Head Height | Length - Below Head [x] | Length - Below Head [x] | Length - Below Head [x] | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Keystone Electronics | Brass | Brass | Nickel | Tin | 6-32 | Right Angle Through Hole | 4 | 15 A | Solder | Power Tap Screw Terminal | |||||||||||||||
 Keystone Electronics | Brass | Brass | Nickel | Tin | 6-32 | Right Angle Through Hole | 4 | 15 A | Solder | Power Tap Screw Terminal | |||||||||||||||
Keystone Electronics | Brass | Brass | Nickel | Tin | 6-32 | Right Angle Through Hole | 4 | 15 A | Solder | Power Tap Screw Terminal | |||||||||||||||
Keystone Electronics | Brass | Brass | Nickel | Tin | 6-32 | Right Angle Through Hole | 4 | 15 A | Solder | Power Tap Screw Terminal | |||||||||||||||
Keystone Electronics | Steel | Brass | Nickel | Tin | 6-32 | Right Angle Through Hole | 4 | 15 A | Snap-Fit | Power Tap Screw Terminal | |||||||||||||||

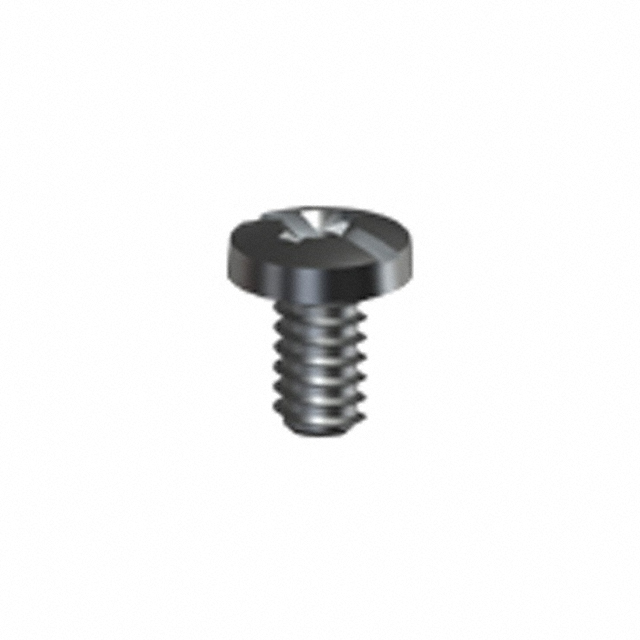

 Keystone Electronics | 7.16 mm | 0.282 in | Nickel | Binding Head | Combination | #6-32 | Machine Screw | 8.46 mm | 0.333 in | 0.083 " | 2.11 mm | 1/4 | 6.35 mm | 0.25 in | Brass | ||||||||||
Keystone Electronics | Brass | Brass | Nickel | Tin | 6-32 | Right Angle Through Hole | 4 | 15 A | Solder | Power Tap Screw Terminal |
