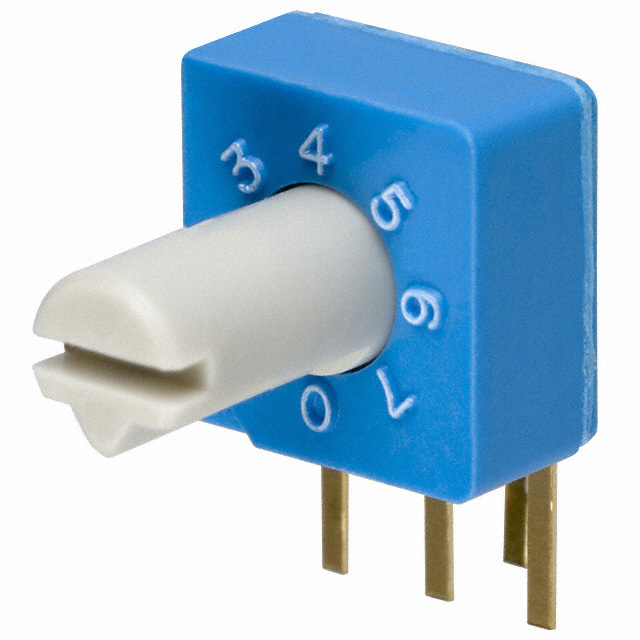

S-8111 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH ROTARY DIP OCTAL 0.1A 5V
| Part | Electrical Life | Length [x] | Length [x] | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Current Rating (Amps) | Contact Finish | Voltage Rating | Actuator Level | Pitch | Pitch | Actuator Type | Washable | Height Above Board | Height Above Board [z] | Contact Material | Circuit | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 10000 Cycles | 7.2 mm | 0.283 in | Polybutylene Terephthalate (PBT) | -25 °C | 70 °C | 8 | 100 mA | Gold | 5 V | Raised | 2.54 mm | 0.1 " | Rotary with Shaft | 7.2 mm | 0.283 in | Copper Alloy | Octal | Right Angle Through Hole | PC Pin |
