FA5S015H Series
Manufacturer: JAE Electronics
Beta
⌘K

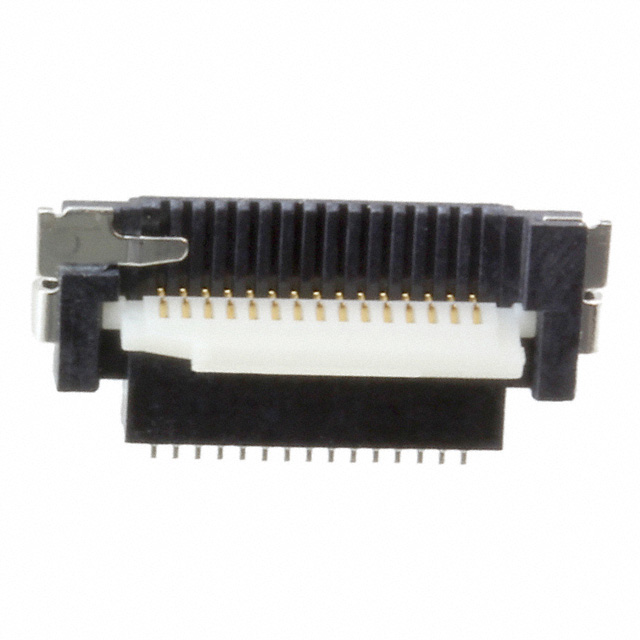

CONN FPC BOTTOM 15POS 0.5MM R/A
| Part | Housing Color | Mating Cycles | Current Rating (Amps) | Actuator Color | Contact Finish | Number of Positions | Features | Height Above Board [z] | Height Above Board [z] | Housing Material | Mounting Type | FFC, FCB Thickness | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Locking Feature | Voltage Rating | Termination | Connector/Contact Type | Flat Flex Type | Material Flammability Rating | Contact Material | Pitch | Pitch | Cable End Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Black | 20 | 0.8 A | White | Gold | 15 | Solder Retention Zero Insertion Force (ZIF) | 1.45 mm | 0.057 in | Glass Filled Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 0.3 mm | Glass Filled Nylon Polyamide (PA) | 85 °C | -40 C | Flip Lock | 50 V | Solder | Contacts Bottom | FPC | UL94 V-0 | Copper Alloy | 0.02 " | 0.5 mm | Tapered |
