BG232V Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 20-23MM M32 S STEEL

Part	Thread Length	Thread Length	Thread Size	Type	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Ingress Protection	Includes	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]

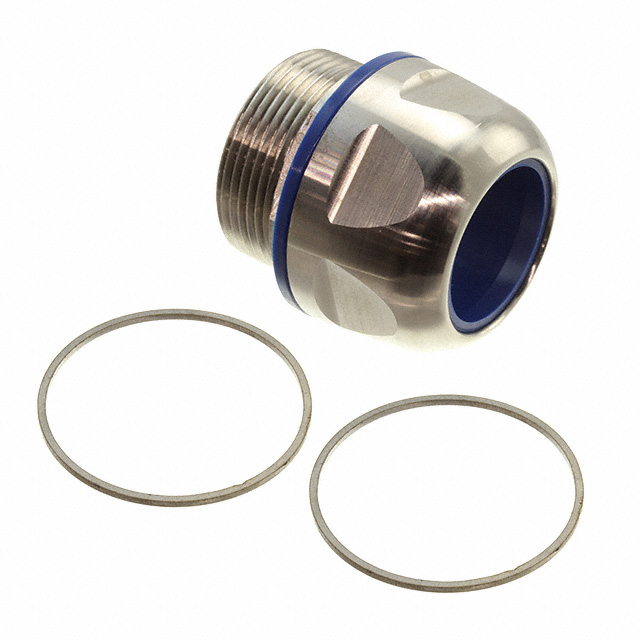

Pflitsch BG232VACP	11 mm	0.433 in	M32x1.5	Cable Gland	1.26 in	32 mm	0.787 "	20 mm	0.906 in	23 mm	Stainless Steel	85 °C	-40 C	Silver	IP66 IP68 IP69	Sealing Ring

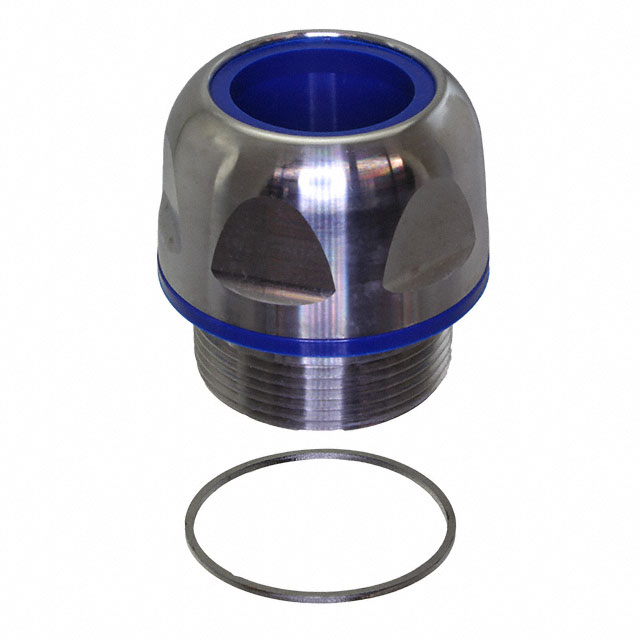

Pflitsch BG232VA21CP	11 mm	0.433 in	M32x1.5	Cable Gland	1.26 in	32 mm			0.827 in		Stainless Steel	85 °C	-40 C	Silver	IP66 IP68 IP69	Sealing Ring	21 mm	18.01 mm	0.709 "

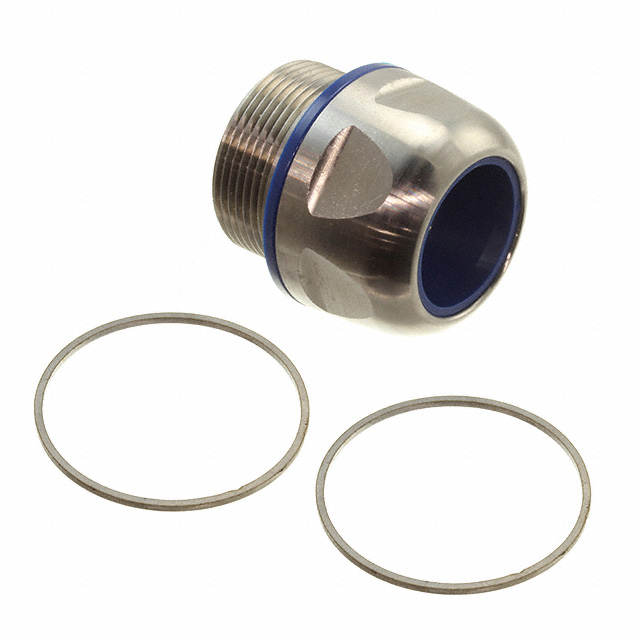

Pflitsch BG232VATRICP	12 mm	0.472 in	M32x1.5	Cable Gland	1.26 in	32 mm					Brass Nickel Plated	85 °C	-40 C	Silver	IP68 IP69	Sealing Ring		20.07 mm	0.79 in	0.91 in	23.11 mm
