392-054 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

...

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Gender	Number of Positions/Bay/Row	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination	Read Out	Pitch	Pitch	Termination Rows [custom]	Number of Rows [custom]	Features
EDAC Inc. 392-054-540-104	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	54	Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Non Specified - Single Edge	Black	0.25 Ám	10 Áin	1	Wire Wrap	Single	0.1 "	2.54 mm

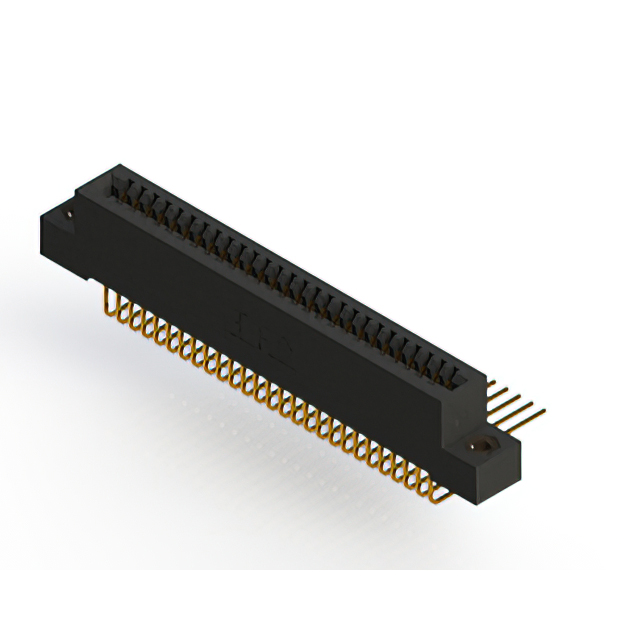

EDAC Inc. 392-054-558-207	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	27	Right Angle Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	Black	0.25 Ám	10 Áin		Solder Wire Wrap	Dual	0.1 "	2.54 mm	2	2
EDAC Inc. 392-054-559-102	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	54	Right Angle Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Single Edge	Black	0.25 Ám	10 Áin	1	Solder Wire Wrap	Single	0.1 "	2.54 mm
EDAC Inc. 392-054-542-104	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	54	Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Non Specified - Single Edge	Black	0.25 Ám	10 Áin	1	Wire Wrap	Single	0.1 "	2.54 mm

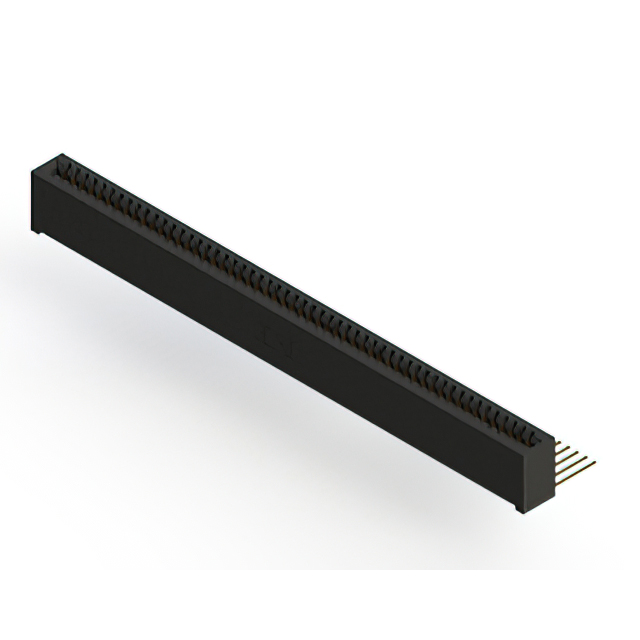

EDAC Inc. 392-054-559-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	54	Right Angle Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever				Non Specified - Single Edge	Black	0.25 Ám	10 Áin	1	Solder Wire Wrap	Single	0.1 "	2.54 mm

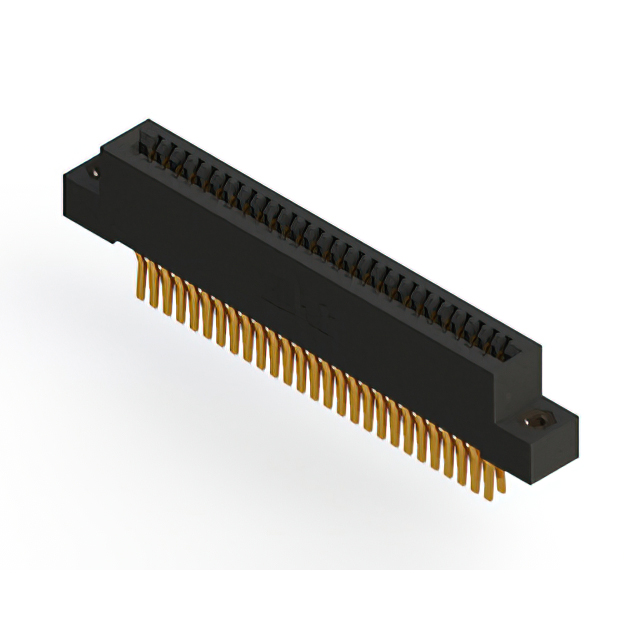

EDAC Inc. 392-054-560-208	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	27	Board Edge Straddle Mount	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	Black	0.25 Ám	10 Áin		Solder	Dual	0.1 "	2.54 mm	2	2	Card Extender
EDAC Inc. 392-054-541-207	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	27	Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	Black	0.25 Ám	10 Áin		Wire Wrap	Dual	0.1 "	2.54 mm	2	2
EDAC Inc. 392-054-524-108	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	54	Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Single Edge	Black	0.25 Ám	10 Áin	1	Solder	Single	0.1 "	2.54 mm
EDAC Inc. 392-054-558-202	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	27	Right Angle Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin		Solder Wire Wrap	Dual	0.1 "	2.54 mm	2	2

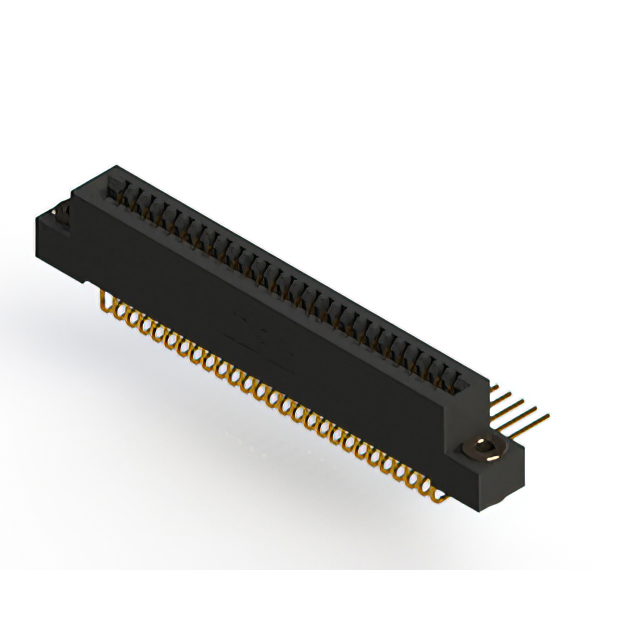

EDAC Inc. 392-054-559-203	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	54	Female	27	Right Angle Through Hole	Copper Alloy	-40 C	105 ░C	Gold	Cantilever	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin		Solder Wire Wrap	Dual	0.1 "	2.54 mm	2	2
