V7-1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
MICROSWITCH, MINIATURE, STRAIGHT LEVER, SPDT, QUICK CONNECT, 15 A
| Part | Electrical Life | Actuator Type | Mechanical Life | Pretravel | Pretravel | Operating Position | Operating Position | Voltage Rating - AC | Current Rating (Amps) | Operating Force | Mounting Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel | Termination Style | Switch Function | Voltage Rating - DC | Release Force | Differential Travel [x] | Differential Travel [x] | Operating Position [x] | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

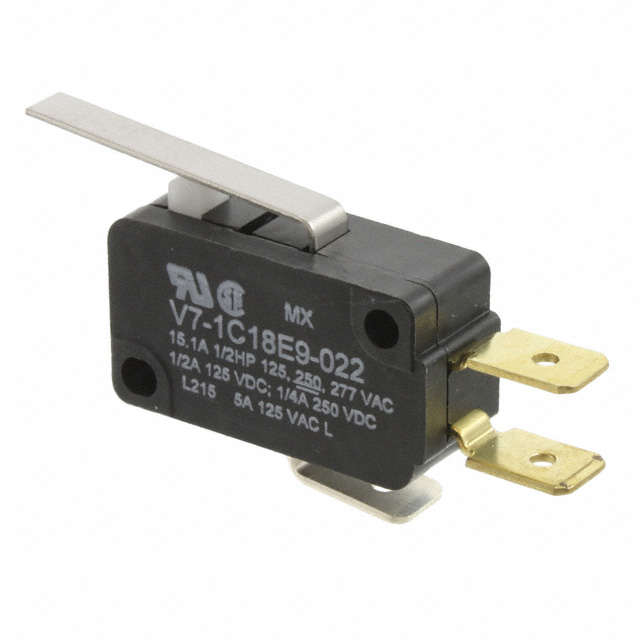

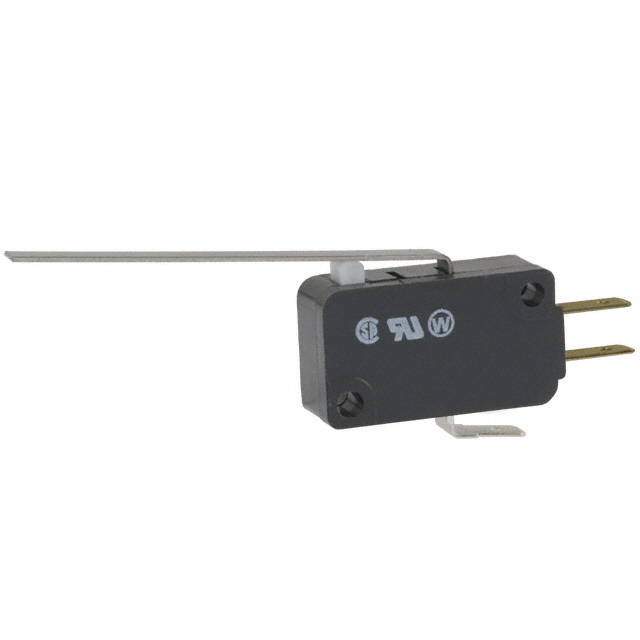

 Honeywell Sensing and Productivity Solutions | 100000 Cycles | Lever Straight | 10000000 Cycles | 0.11 in | 2.8 mm | 0.6 in | 15.2 mm | 125 V | 15 A 500 mA | 85 gf | Chassis Mount | SPDT | 85 °C | -40 C | 0.065 " | 1.7 mm | 0.76 mm | 0.03 in | Quick Connect - 0.250" (6.3mm) | On-Mom | 125 VDC | |||||
 Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||||

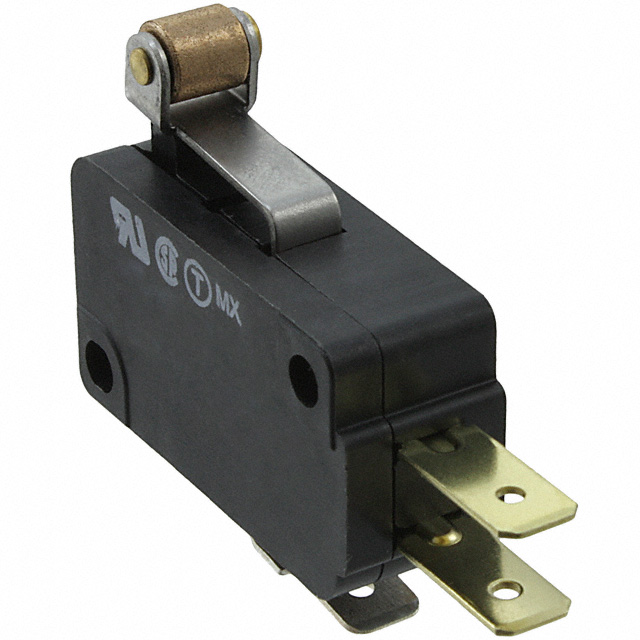

 Honeywell Sensing and Productivity Solutions | 100000 Cycles | Lever Roller | 10000000 Cycles | 0.047 in | 1.2 mm | 0.812 in | 20.6 mm | 125 V | 15 A 500 mA | 175 gf | Chassis Mount | SPDT | 150 °C | -40 C | 0.032 " | 0.81 mm | 0.3 mm | 0.012 in | Quick Connect | On-Mom | 125 VDC | 19 gf | ||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||||

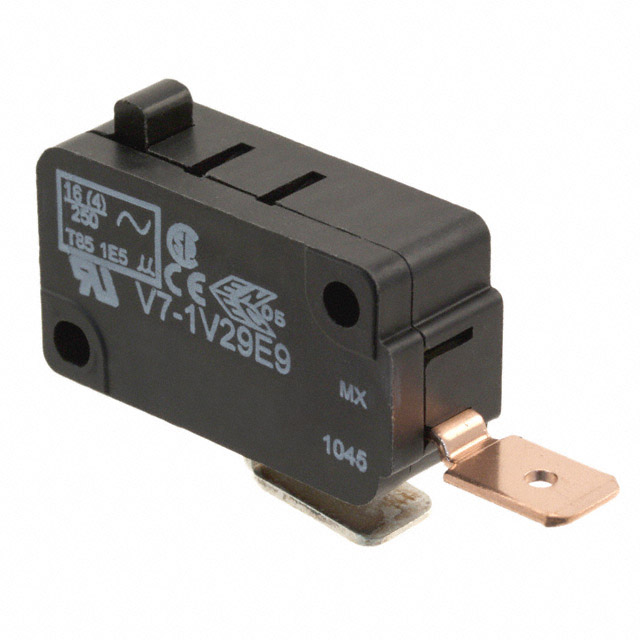

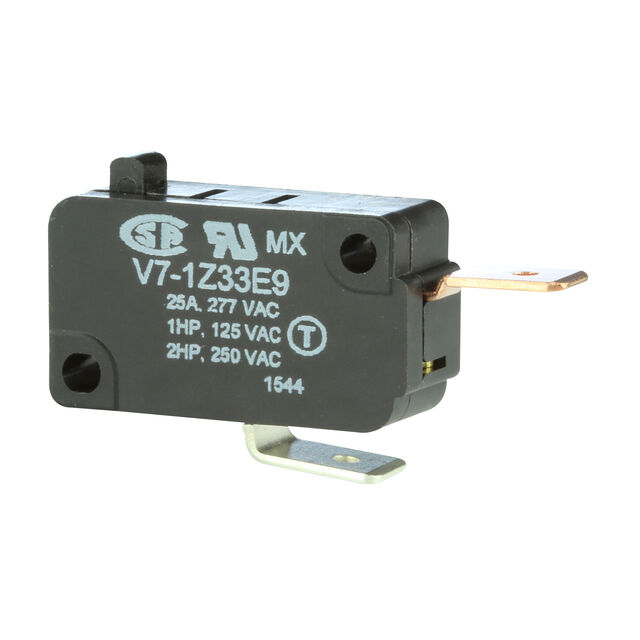

Honeywell Sensing and Productivity Solutions | Round (Pin Plunger) | 10000000 Cycles | 0.047 in | 1.2 mm | 0.579 in | 14.7 mm | 277 V | 25 A | 225 gf | Chassis Mount | SPST-NO | 85 °C | -40 C | 0.05 " | 1.27 mm | Quick Connect - 0.250" (6.3mm) | Off-Mom | 0.01 in | 0.25 mm | |||||||

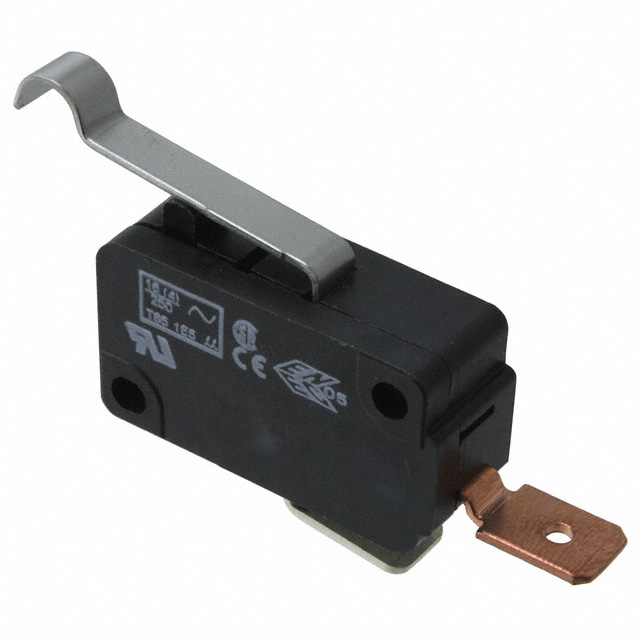

 Honeywell Sensing and Productivity Solutions | 100000 Cycles | Lever Simulated Roller | 10000000 Cycles | 0.114 in | 2.9 mm | 125 V | 21 A | 110 gf | Chassis Mount | SPST-NO | 85 °C | -40 C | 0.062 " | 1.6 mm | 0.6 mm | 0.025 in | Quick Connect - 0.250" (6.3mm) | Off-Mom | 7 gf | 18.5 mm | 0.73 in | |||||
 Honeywell Sensing and Productivity Solutions | 100000 Cycles | Round (Pin Plunger) | 10000000 Cycles | 0.047 in | 1.2 mm | 0.579 in | 14.7 mm | 277 V | 25 A | 225 gf | Chassis Mount | SPST-NC | 150 °C | -40 C | 0.05 " | 1.27 mm | Quick Connect - 0.250" (6.3mm) | On-Mom | 20 gf | 0.01 in | 0.25 mm | |||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions |
