77214 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

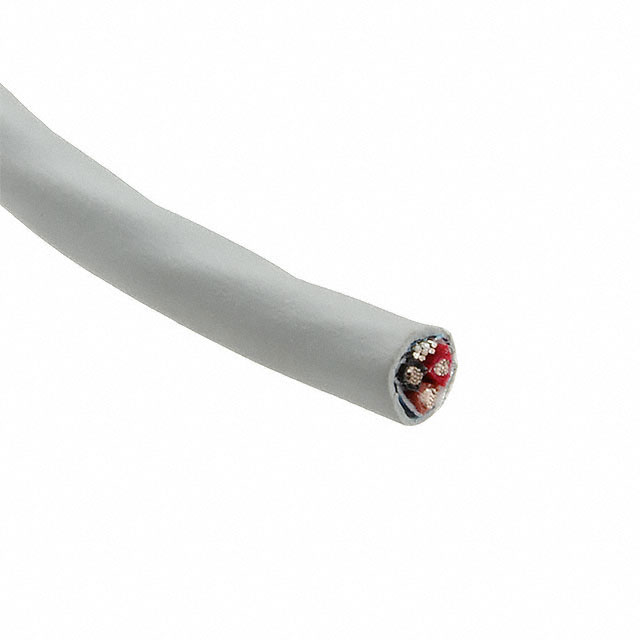

CABLE 3CON 18AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Jacket Color | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Ratings | Cable Type | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Conductor Material | Features | Conductor Insulation | Shield Type | Jacket (Insulation) Material | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum Copper Tinned | Slate | 18 AWG | 0.241 in | 6.12 mm | ISO 10993 | Multi-Conductor | 3 | -50 °C | 105 ░C | 16 | 30 AWG | 0.813 mm | 0.032 in | 100 ft | 30.5 m | Copper Tinned | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Braid Foil | Polyphenylene Ether Modified (mPPE) | 600 V | ||
ALPHA WIRE | 100 % | Aluminum Copper Tinned | Slate | 18 AWG | 0.241 in | 6.12 mm | ISO 10993 | Multi-Conductor | 3 | -50 °C | 105 ░C | 16 | 30 AWG | 0.813 mm | 0.032 in | Copper Tinned | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Braid Foil | Polyphenylene Ether Modified (mPPE) | 600 V | 304.8 m | 1000 ft | ||
ALPHA WIRE | 100 % | Aluminum Copper Tinned | Slate | 18 AWG | 0.241 in | 6.12 mm | ISO 10993 | Multi-Conductor | 3 | -50 °C | 105 ░C | 16 | 30 AWG | 0.813 mm | 0.032 in | Copper Tinned | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Braid Foil | Polyphenylene Ether Modified (mPPE) | 600 V |
