2842154 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, SOLDER TERMINAL, BLACK INSULATOR

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Mating	Voltage Rating	Contact Type	Termination	Insulation Height	Insulation Height	Current Rating (Amps)	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Insulation Material	Contact Material	Contact Shape	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions Loaded	Number of Rows	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Shrouding	Number of Positions

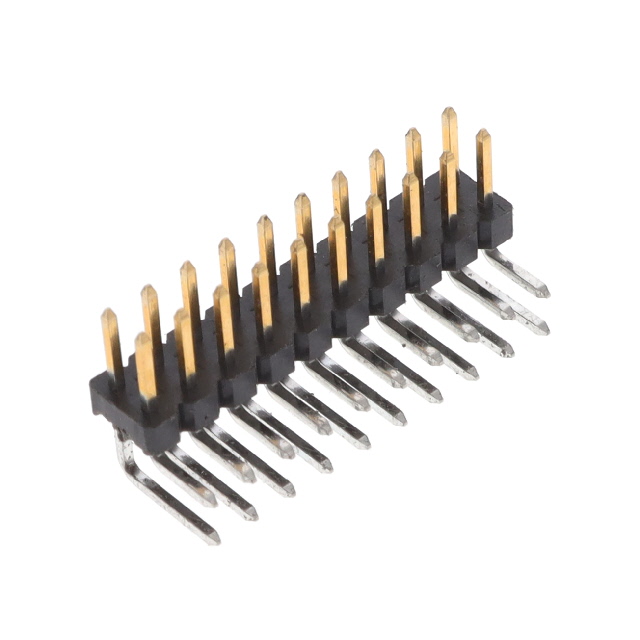

TE Connectivity Raychem Cable Protection 1-2842154-0	3.94 µin	0.1 µm	Breakaway Header	Gold	125 VAC	Male Pin	Solder	1.5 mm	0.059 "	2 A	Pick and Place	2 çm	78.7 çin	20	0.11 in	2.79 mm	Thermoplastic	Copper Alloy	Square	4 mm	0.157 in	0.079 in	2 mm	Through Hole Right Angle	Tin	125 °C	-40 °C	Push-Pull	All	2	Black	0.079 in	2 mm	UL94 V-0	Unshrouded

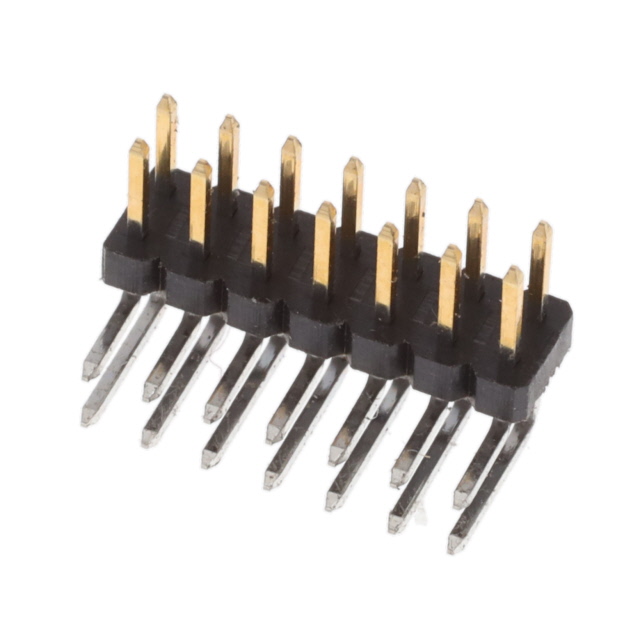

TE Connectivity Raychem Cable Protection 2842154-7	3.94 µin	0.1 µm	Breakaway Header	Gold	125 VAC	Male Pin	Solder	1.5 mm	0.059 "	2 A	Pick and Place	2 çm	78.7 çin	14	0.11 in	2.79 mm	Thermoplastic	Copper Alloy	Square	4 mm	0.157 in	0.079 in	2 mm	Through Hole Right Angle	Tin	125 °C	-40 °C	Push-Pull	All	2	Black	0.079 in	2 mm	UL94 V-0	Unshrouded
TE Connectivity Raychem Cable Protection 2842154-5	3.94 µin	0.1 µm	Breakaway Header	Gold	125 VAC	Male Pin	Solder	1.5 mm	0.059 "	2 A	Pick and Place	2 çm	78.7 çin	10	0.11 in	2.79 mm	Thermoplastic	Copper Alloy	Square	4 mm	0.157 in	0.079 in	2 mm	Through Hole Right Angle	Tin	125 °C	-40 °C	Push-Pull	All	2	Black	0.079 in	2 mm	UL94 V-0	Unshrouded

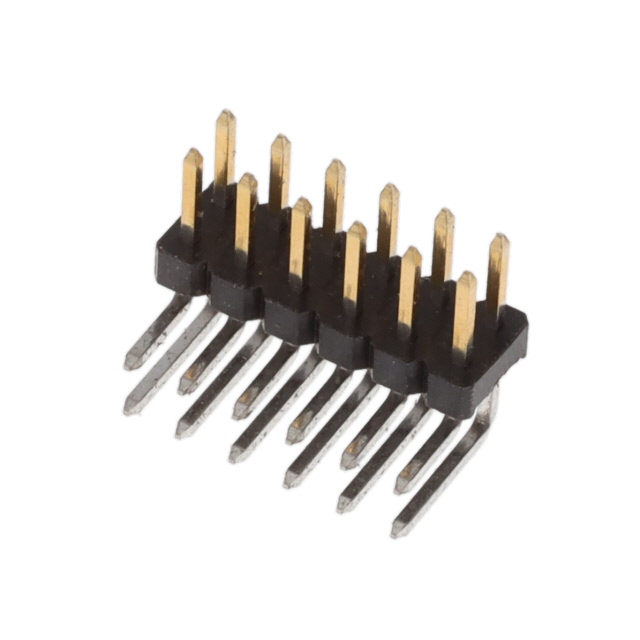

TE Connectivity Raychem Cable Protection 2842154-6	3.94 µin	0.1 µm	Breakaway Header	Gold	125 VAC	Male Pin	Solder	1.5 mm	0.059 "	2 A	Pick and Place	2 çm	78.7 çin	12	0.11 in	2.79 mm	Thermoplastic	Copper Alloy	Square	4 mm	0.157 in	0.079 in	2 mm	Through Hole Right Angle	Tin	125 °C	-40 °C	Push-Pull	All	2	Black	0.079 in	2 mm	UL94 V-0	Unshrouded
TE Connectivity Raychem Cable Protection 2842154-8	3.94 µin	0.1 µm	Breakaway Header	Gold	125 VAC	Male Pin	Solder	1.5 mm	0.059 "	2 A	Pick and Place	2 çm	78.7 çin		0.11 in	2.79 mm	Thermoplastic	Copper Alloy	Square	4 mm	0.157 in	0.079 in	2 mm	Through Hole Right Angle	Tin	125 °C	-40 °C	Push-Pull	All	2	Black	0.079 in	2 mm	UL94 V-0	Unshrouded	16
