T 3524 Series

Catalog

CONN PLUG MALE 8P SILV SLDR CUP

Part	Orientation	Shell Size - Insert	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Current Rating (Amps)	Shell Finish	Voltage Rating	Primary Material	Number of Positions	Color	Mounting Type	Connector Type	Features	Ingress Protection	Contact Finish - Mating	Contact Size	Insert Material	Contact Shape	Type	Note	Contact Type	Material Flammability Rating	Shielding	Housing Color
Amphenol Tuchel Industrial T 3524 502	Keyed	M16-8	Bayonet Lock	-40 C	100 °C	Die Cast	7 A	Nickel	250 V	Metal	8	Silver	Free Hanging (In-Line)	Plug Male Pins	Cable Clamp Strain Relief	IP40	Silver

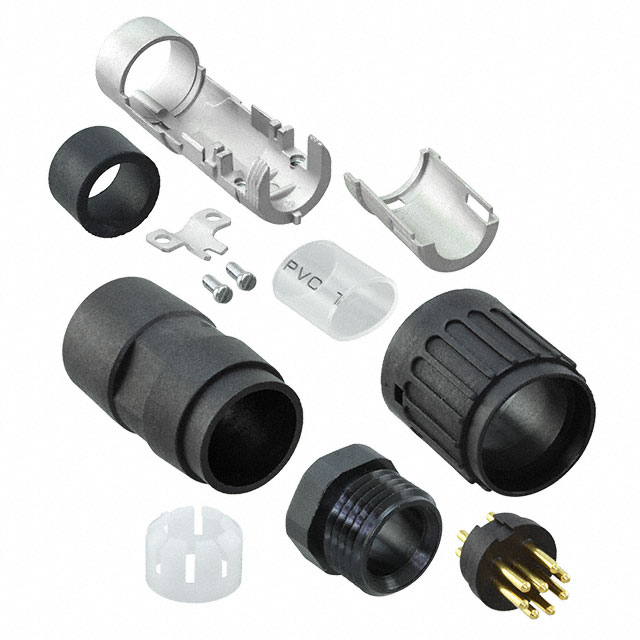

Amphenol Tuchel Industrial T 3524 528	Keyed	M16-8	Bayonet Lock	-40 C	100 °C	Die Cast	7 A	Nickel	250 V	Metal	8	Silver	Free Hanging (In-Line)	Plug Male Pins	Cable Clamp Strain Relief	IP40	Gold

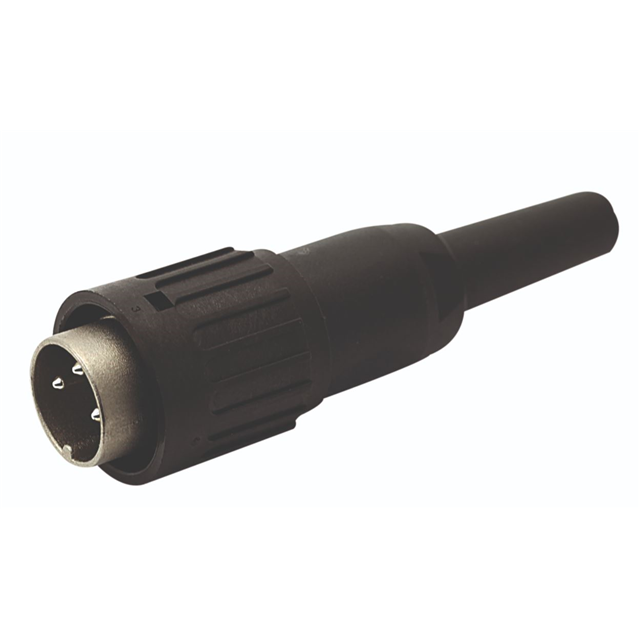

Amphenol Tuchel Industrial T 3524 551	Keyed	M16-8	Bayonet Lock	-40 C	100 °C	Die Cast		Nickel			8		Free Hanging (In-Line)	Plug Housing	Cable Clamp Coupling Nut Strain Relief	IP40		1.5 mm	Thermoplastic	Circular	For Male Pins	Contacts Not Included	Crimp	UL94 V-0	Unshielded	Black Silver
Amphenol Tuchel Industrial T 3524 501	Keyed	M16-8	Bayonet Lock	-40 C	100 °C	Die Cast	7 A	Nickel	250 V	Metal	8	Silver	Free Hanging (In-Line)	Plug Male Pins	Strain Relief	IP40	Silver
